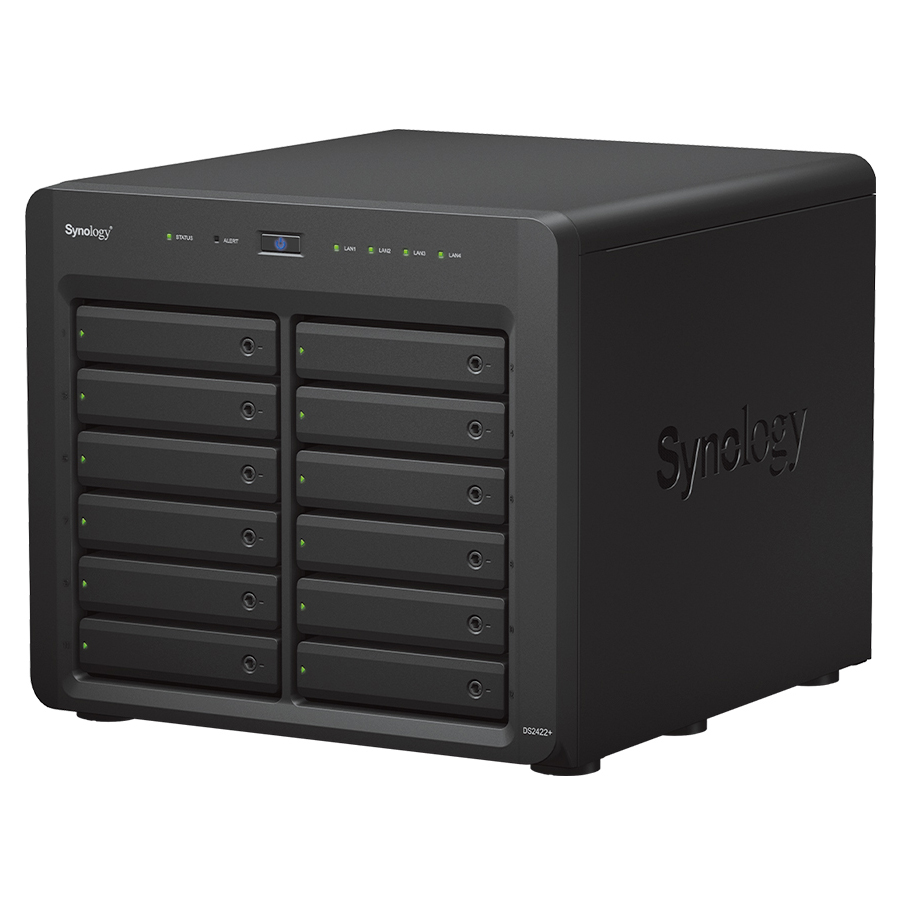

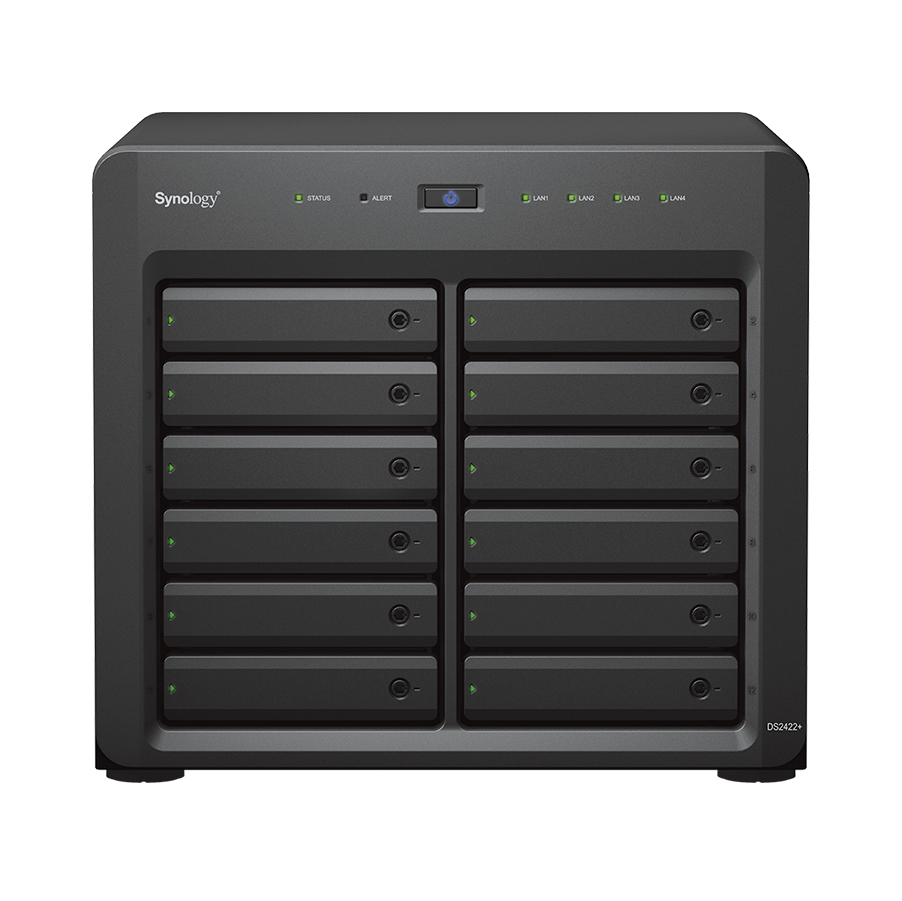

Synology DiskStation DS2422+
Flexible large-scale storage for small and medium-sized businesses
Click here to jump to more pricing!
Overview:
Synology DiskStation DS2422+ is a compact 12-bay desktop NAS that takes file sharing and management to the next level. The unit can be scaled to 24 drive bays and excels at serving large data sets in multiuser environments. It comes with powerful file management, surveillance, and backup capabilities, and can serve as high-quality video and VM storage. With support for up to 32 GB of memory, NVMe SSD cache, and 25GbE network cards, the DS2422+ is ready for large-scale business applications.
- Accelerated Performance
Delivers up to 2,201 MB/s read and 1,383 MB/s sequential write performance - Easy Capacity Expansion
Double storage capacity to 24 drive bays with one 12- bay DX1222 expansion unit - Supports Demanding Applications
Leverage up to 32 GB memory, 10/25GbE networking, or NVMe SSD Cache4 to boost read and write speed
CPU
AMD Ryzen Quad-core 2.2 GHz
Throughput
2,201/1,383 MB/s sequential read read/write throughput
Expandability
Easily add 10/25GbE and NVMe SSD cache
Scalability
Expand to 24 bays with one DX1222 expansion unit
Features:
Rise to the challenge
Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.
Maximize bandwidth
Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.

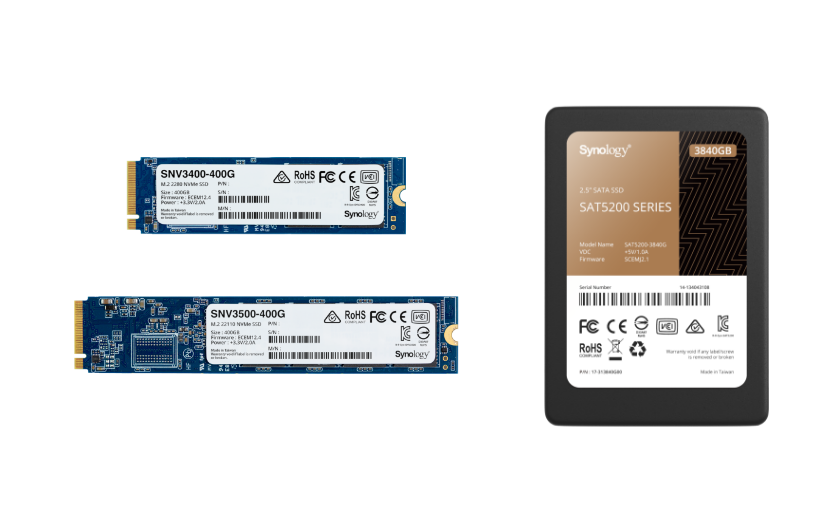

Boost storage performance
Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.

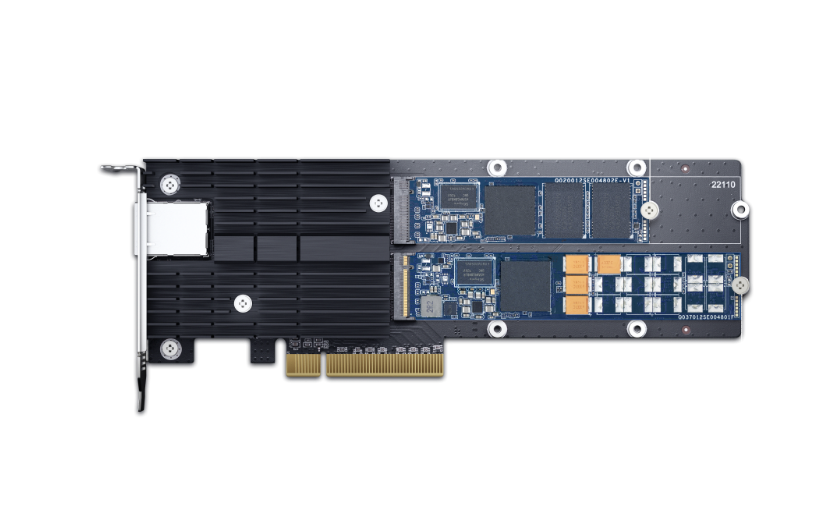

Do both with one card
Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.
Out-of-the-box data protection
Protect your data with professional backup software for your Synology NAS, other devices, and applications.
Consolidate backups to your NAS
Active Backup Suite
Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite. Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.
Implement a 3-2-1 backup strategy
Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.
Back up your NAS to other devices
Hyper Backup
Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables configurable point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.
Get your business ready for remote work
Enable your workforce to go remote by leveraging Synology’s out-of-the-box solutions for collaboration, file sharing, and communication.
Synology Drive
Host your own private cloud behind the safety of your NAS with 100% data ownership and no subscription fees.
Synology Office
Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.
Synology Chat
Discuss and collaborate with colleagues using secure messaging designed for teams, with mobile, desktop, and browser clients.
Storage for virtualization
Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines with full certification for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack virtualization environments.
Synology Storage Console for VMware or Windows platforms lets you manage storage directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
Powered by Synology DiskStation Manager
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.
Data Protection
Keep your business safe from data loss and minimize service downtime.
User Management
Manage user accounts and devices throughout your business with powerful directory services.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
File Management
Manage, sync, and share files from multiple devices through a centralized platform.
System Administration
Manage the health of your deployments and centrally administer updates with ease.
Security
Secure data with comprehensive built-in security tools to protect your devices against evolving threats.
Specifications:

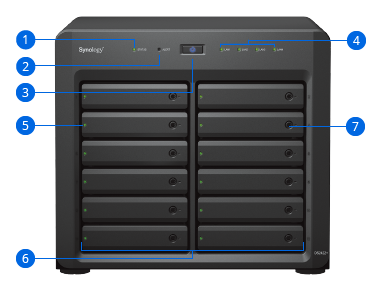

- Status indicator
- Alert indicator
- Power Button
- LAN Indicators
- Drive status indicator
- Drive Trays
- Drive Tray Locks

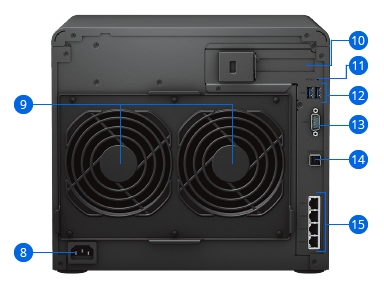

- Power Port
- System Fans
- PCIe Expansion Slot
- Reset button
- USB 3.2 ports
- Console Port
- Expansion Ports
- 1GbE RJ-45 Ports
| DS2422+ Hardware Specifications: | |
|---|---|
| Hardware Specifications | |
| CPU | AMD Ryzen V1500B quad-core 2.2 GHz |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | 4 GB DDR4 non-ECC SODIMM (expandable up to 32 GB with 2 x D4ES01-16G) |
| Compatible drive type |
|
| Hot swappable drive | Yes |
| External port |
|
| Form factor | Desktop |
| Size (Height x Width x Depth) | 270 x 300 x 340 mm |
| Weight | 9.5 kg |
| LAN port | 4 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| PCIe Expansion |
|
| Scheduled power on/of | Yes |
| System fans | 2 x (120 x 120 x 25 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, single phase |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| General DSM specification | |
| Networking protocol | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) |
| File system |
|
| Supported RAID type | Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage management |
|
| SSD cache |
|
| File sharing capability |
|
| Privilege | Windows Access Control List (ACL), application privileges |
| Directory service | Connects with Windows AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials |
| Virtualization | VMware vSphere, Microsoft Hyper-V, Citrix, OpenStack |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite) |
| Supported browser | Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets |
| File Server & Synchronization | |
| Cloud Sync | Offers one or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers and Yandex Disk |
| Drive | Synchronizes files across Windows, macOS, Linux, Android and iOS. The built-in cross-platform portal allows access to data anytime and anywhere
|
| File Station | Provides virtual drives, remote folders, Windows ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs |
| Hybrid Share | Efficiently synchronizes files across sites by keeping shared data on Synology C2 Storage and streaming files to Synology NAS worldwide on request. Frequently requested files are cached at each site for low-latency access. |
| FTP Server | Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs |
| Presto File Server | Enables high-speed data transfer over WAN through the exclusive SITA technology between Synology NAS and desktop platforms. |
| Universal Search | Search through files, metadata, and more on your NAS. Integration with Windows Search and macOS Spotlight makes it easy to find files. |
| Migration Assistant | Migrates data, system setting, and applications seamlessly from one Synology NAS to another to ensure maximum service availability. |
| SAN Storage & Virtualization | |
| SAN Manager |
|
| Virtual Machine Manager | Supports running Windows, Linux, and Virtual DSM-based virtual machines on Synology NAS. |
| Data Protection & Backup Solution | |
| Active Backup for Business | An all-in-one backup solution designed for heterogeneous business IT environments. It enables IT admins to remotely manage and protect PCs, servers, and VMs from one centralized console |
| Active Backup for Google Workspace | Supports backup and restoration of Google Workspace My Drive, Team Drive, Gmail, Contacts, and Calendar |
| Active Backup for Microsoft 365 | Supports backup and restoration of Microsoft 365 OneDrive for Business, Outlook, Contacts, and Calendar |
| Backup tools |
|
| Hyper Backup | Supports local backup, network backup, and data backup to other devices, Synology NAS, and public clouds including C2 Storage. |
| Snapshot Replication |
|
| Synology High Availability | Reduces service downtime by combining two identical NAS into a high-availability cluster |
| Productivity & Collaboration | |
| Collaboration tools | Collaborate with instant messaging service Synology Chat, online documents editor Synology Office, and scheduling assistant Synology Calendar
|
| Note Station | A note taking platform that supports rich text, note organization and versioning, encryption, sharing, media embedding, and attachments |
| Synology MailPlus Server | A secure, reliable, and private mail solution that offers high-availability, load balancing, security, and filtering options. |
| Synology MailPlus | An intuitive webmail interface for Synology MailPlus Server with customizable mail labels, filters, and user interface. |
| Multimedia | |
| Synology Photos | An efficient photo management solution for professional and amateur photographers. Automated tools allow users to group, filter, organize, and share content while keeping their photos safe and secure. |
| Other packages | Video Station, Photo Station, Audio Station, iTunes Server |
| Surveillance | |
| Surveillance Station | Maximum IP cameras: 40, for a total of 1,200 FPS at 720p (H.264). |
| All-in-One Servers | |
| Central Management System | Provides a single interface to manage and monitor multiple Synology NAS models |
| Synology Directory Server | Provide a flexible and cost-effective domain controller solution |
| VPN Server |
|
| Active Insight | Monitor the vitals of your Synology NAS fleet from a centralized online portal to gain insights, view historical trends, and ensure performance bottlenecks are smoothed out. |
| Storage Analyzer | Displays volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, and least recently accessed files. |
| Antivirus Essential | Provides full system scans, scheduled scans, white list customization, and auto-update of virus definitions. |
| Web Station | Enables hosting for up to 30 websites with support for PHP/MariaDB and 3rd-party applications. |
| Other packages | DNS Server, RADIUS Server, and Log Center |
| Others | |
| iOS/Android applications | Synology Drive, Synology MailPlus, Synology Secure SignIn, Synology Chat, Synology LiveCam, Synology Photos, Synology Active Insight, DS audio, DS photo, DS video, DS cam, DS file, DS finder, and DS note |
| Other packages | Additional 3rd-party packages are available in the Package Center |
| Environment and Packaging | |
| Environment safety | RoHS compliant |
| Package content |
|
| Optional accessories |
|
| Warranty | 3 Years |
Documentation:
Download the Synology DiskStation DS2422+ Datasheet (PDF).
