Synology Expansion Unit DX1215
12-Bay Expansion Unit for Increasing Capacity of the Synology DiskStation

Overview:

Synology DX1215 delivers an effortless volume expansion and data backup solution for selected Synology DiskStation servers by providing an additional 12 drive slots with SATA III 6Gb/s interface support. Synology DX1215 is backed with Synology’s 5-year limited warranty.

• Plug-and-Use design for seamless storage space upgrade
• Online volume expansion
• SATA III 6Gb/s interface support
• Perfect for local backup solution
• Energy-saving hibernation mode
• Managed from Synology DiskStation Manager (DSM)

Volume Expansion & Backup

When drive capacity is running low on a Synology DiskStation, Synology DX1215 provides an easy way to immediately scale capacity by providing an additional 12 drive slots. A RAID volume on the Synology DiskStation can be expanded directly without having to reformat the existing drives, ensuring the Synology DiskStation continues providing services during capacity expansion.

Synology DX1215 can serve as a dedicated local backup solution for a Synology DiskStation. When created as a separate volume, the Synology DX1215 provides a great backup solution for local drives in case of system failure.

Reliable Plug-and-Use Design

DX1215 securely connects to Synology’s DiskStation servers with a specially designed expansion cable, ensuring easy connection and maximum data throughput. The 6Gb/s connection speed allows the drives in the connected Synology DX1215 to operate as the internal ones of Synology DiskStation.

Green & Easy to Manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. DX1215 will also smartly power on/off with the attached DiskStation, so no user intervention is needed to keep this system running smartly and efficiently.

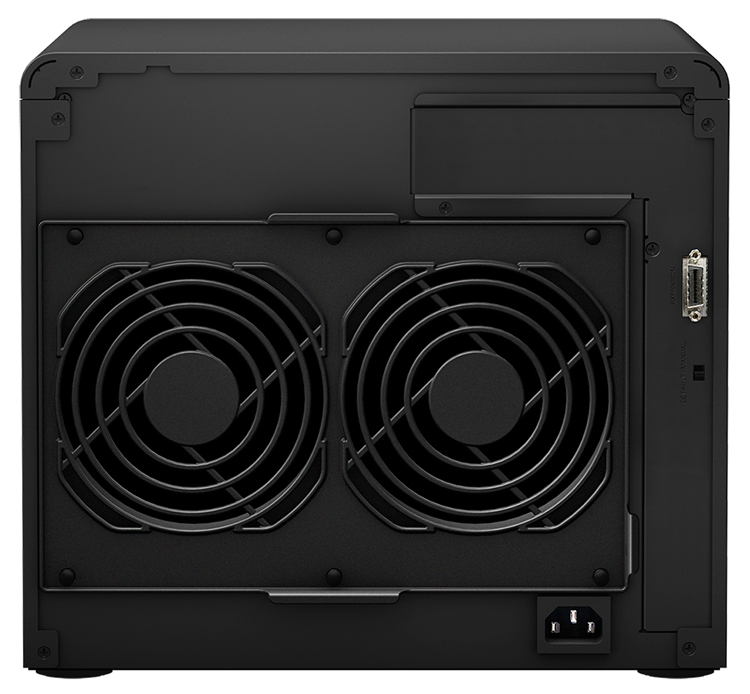

DX1215 comes with a fast detachable fan module with two 120 X 120mm fans and screwless drive trays, making system components replacement fast and tool-free.

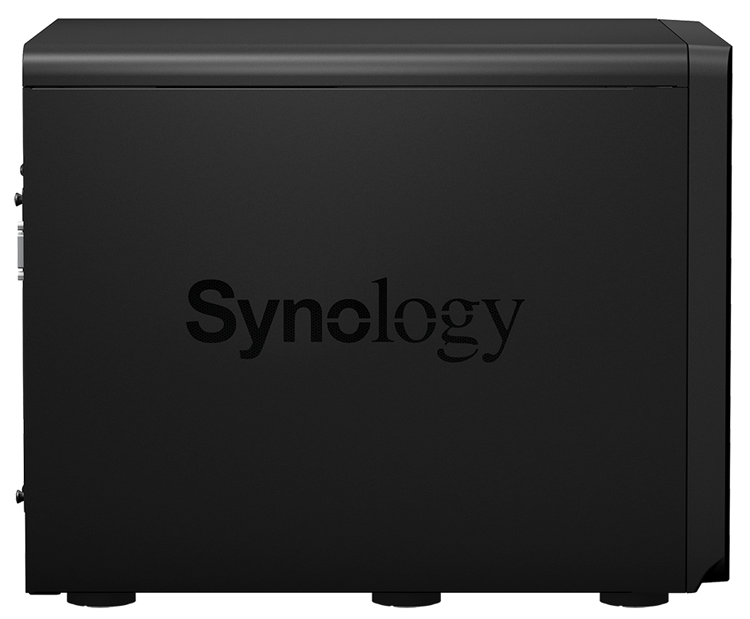

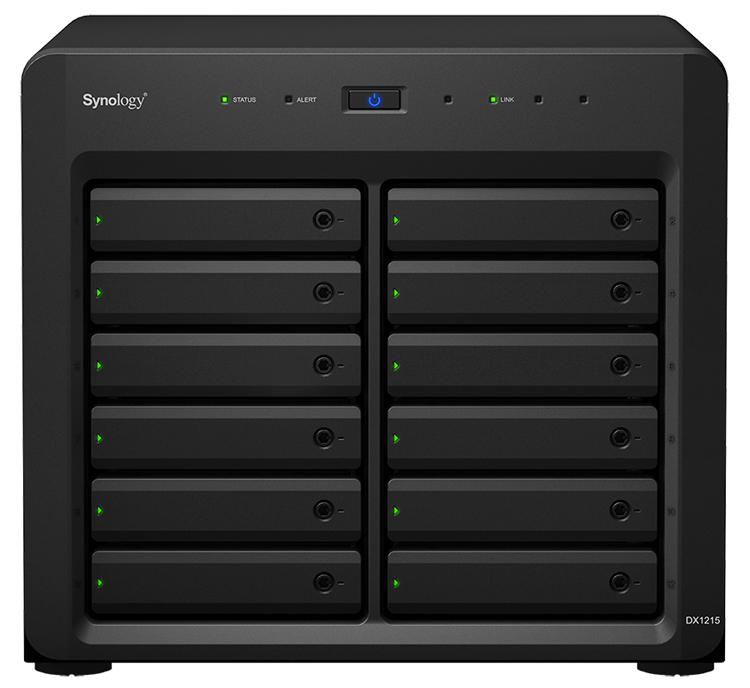

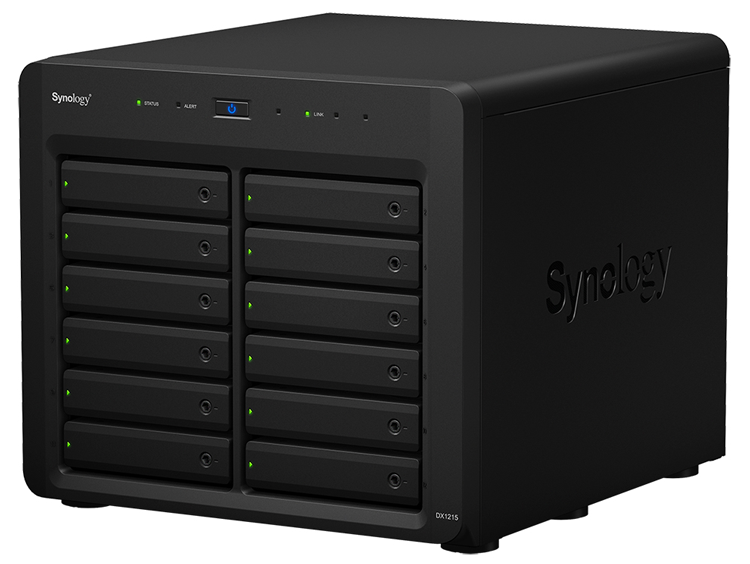

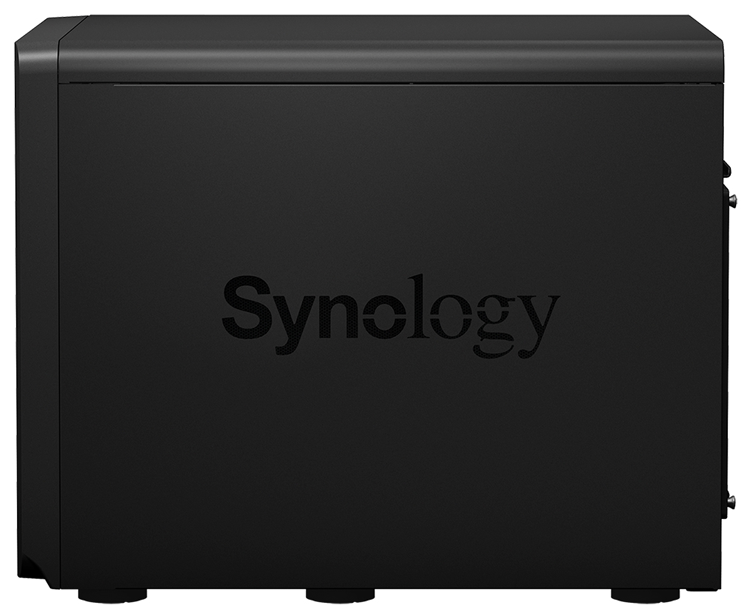

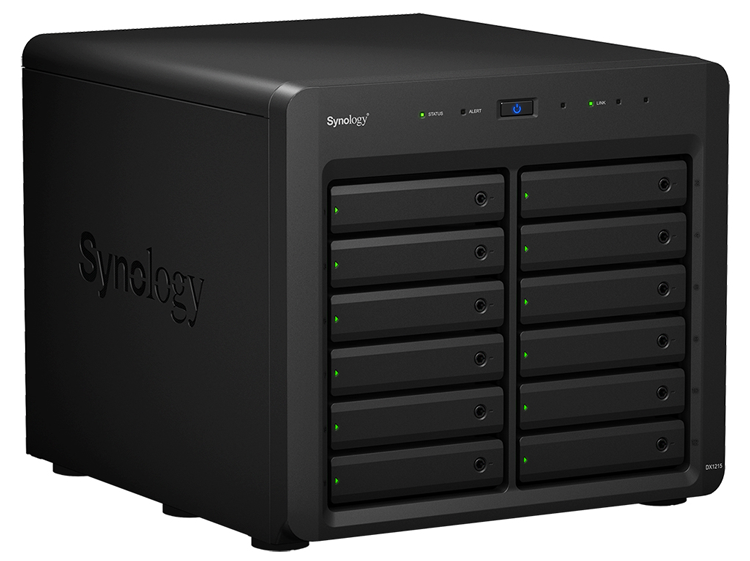

Product Views:

Specifications:

Hardware Specifications:
Applied Models	DS3615xs DS3612xs DS3611xs DS2015xs DS2415+ DS2413+
Note	DSM version requirement: 5.1-5004 or later version
Storage
Drive Bay(s)	12
Compatible Drive Type	3.5" SATA III / SATA II HDD 2.5" SATA III / SATA II HDD 2.5" SATA III / SATA II SSD
Maximum Internal Raw Capacity	96 TB (8 TB HDD X 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
Infiniband port	1
Appearance
Size	270 mm X 300 mm X 340 mm
Weight	9.02 kg
Power
Power Recovery	Synchronized with the Synology DiskStation
Power Supply Unit / Adapter	500W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	51.23 W (Access) 21.71 W (HDD Hibernation)
British Thermal Unit	174.80 BTU/hr (Access) 74.08 BTU/hr (HDD Hibernation)
Note	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Others
System Fan	120 mm X 120 mm X 2 pcs
Easy Replacement System Fan
Noise Level	27.2 dB(A)
Note	Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification	FCC Class B CE Class B BSMI Class B
Warranty	5 Years
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 User's Guide X 1 Accessory Pack X 1 AC Power Cord X 1 Expansion Cable: Infiniband X 1

Documentation:

Download the Synology DX1215 Datasheet  (PDF).
