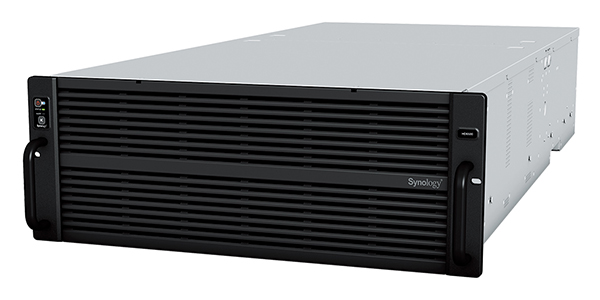

Synology High Density HD6500
Scalable high-density storage server for multi-petabyte applications
Get a Quote!
The Synology HD6500 is a high-density data storage solution for large-scale applications. The 60-bay 4U rackmount server easily scales to 300 drives. Support for fast networking options and built-in high-availability tools make it reliable for warm and cold storage. Native data protection software for PCs, servers, and VMs makes it a powerful centralized backup server. HD6500 is backed by Synology's 5-year limited warranty.
- High-Performance Solution
Leverage dual Intel Xeon Silver 10-core processors and up to 512 GB DDR4 ECC RDIMM memory
- Versatile Storage Server
Great for full system backups, video post-production, and large surveillance deployments
- Easy Capacity Expansion
Easily add up to 4 RX6022sas Expansion Units and leverage a maximum of 300 bays
- Flexible Networking Options
Add 10/25GbE SFP+/SFP28 connectivity or Fibre Channel ports with 4 PCIe slots
- Native Backup Solutions
Reliably protect PCs, servers, VMs, and SaaS applications with Active Backup Suite

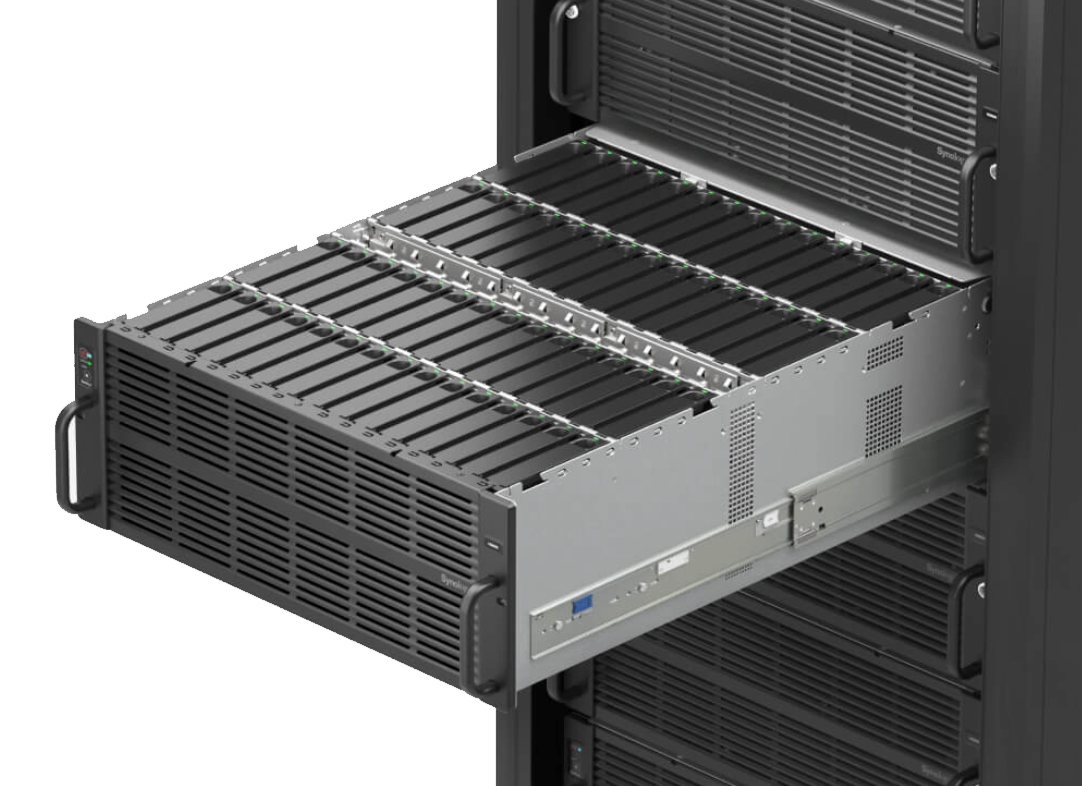

2 x 10-core Intel Xeon Silver
Over 6,688/6,662MB/s sequential read/write
64 GB DDR4 ECC, expandable to 512 GB
Expand to 300 drives with four RX6022sas expansion units
Consistent performance at five times the size
The HD6500 is designed to scale up to 5 times in capacity with four additional RX6022sas expansion units. SAS multipath-enabled connectivity provides up to double the typical performance together and increased redundancy.
Designed for high reliability
The HD6500 is built to keep mission-critical data and services accessible, so that vital work can continue even when disaster strikes.

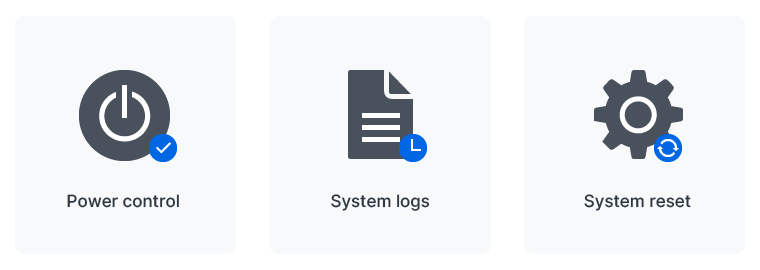

Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

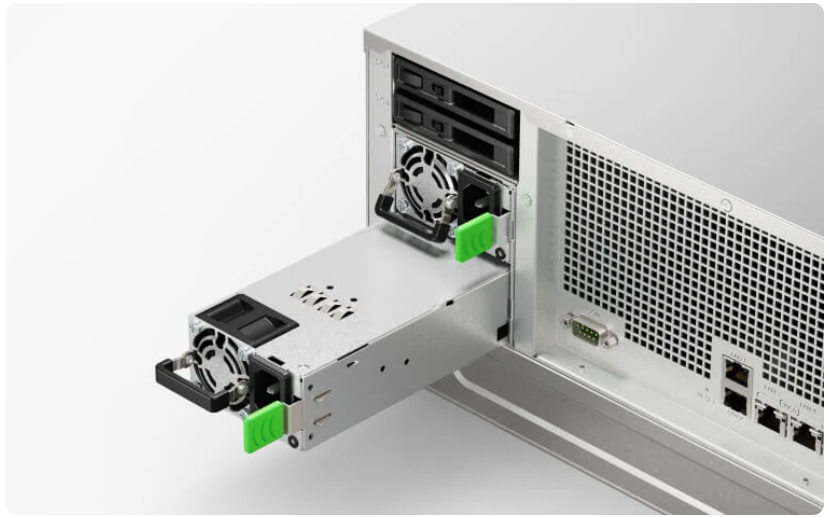

Dual power supply
Reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability with redundant PSUs.

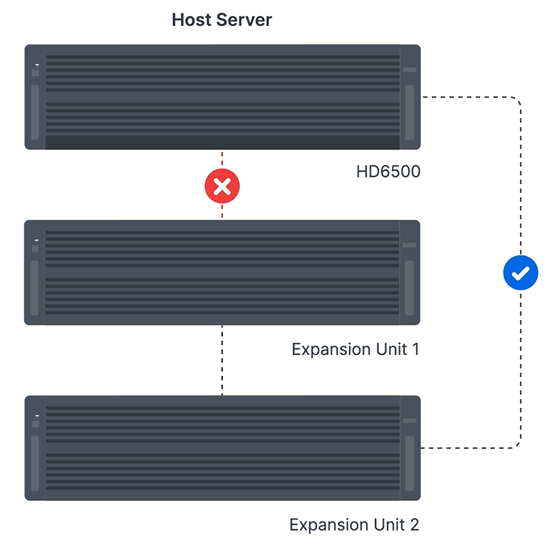

High-reliability expansion architecture
Redundant SAS links prevent single points of failure from affecting other expansion units, ensuring higher data and service availability.
Powerful networking options
The HD6500 supports a wide variety of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity
Three Gigabit Ethernet and two 10GbE RJ-45 ports allow for high transfer speeds right out of the box.
Mix and match network ports

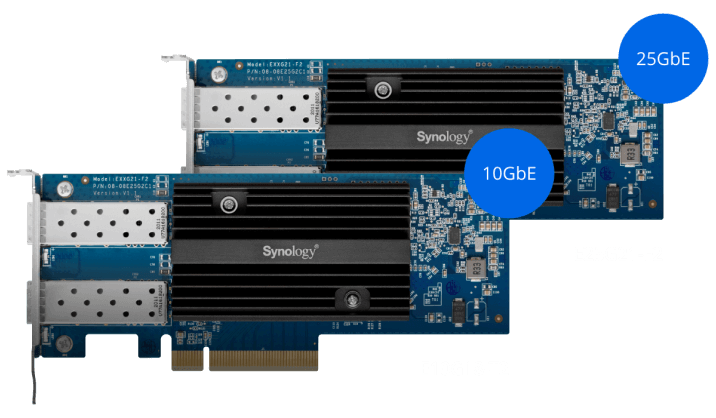

Add up to 10 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations.
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Massive file server
Host and retrieve very large files from extensive archives whenever needed. Provide user friendly access and set up powerful cross-site syncing.

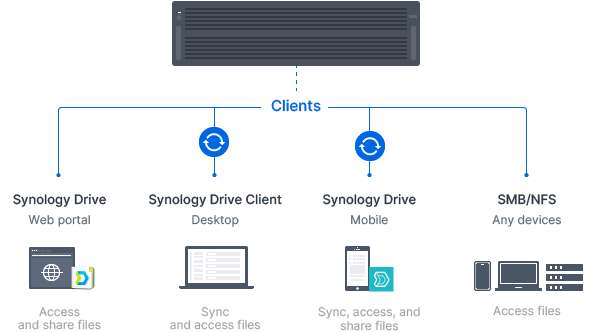

A private cloud suite for file sharing
Synology Drive is a private cloud management and access solution that enables remote data access, synchronization, on-demand file restoration, and backup via desktop and mobile applications. Sync data between different platforms and devices, and access your organization’s files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the advanced Synology Drive Admin Console.
Leverage SMB or NFS shares to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) though Active Directory/LDAP integration and protect files against tampering or removal with built-in snapshot technology.

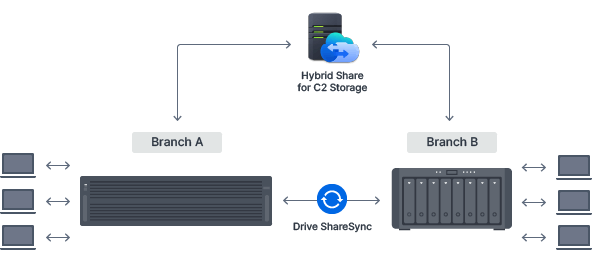

Secure site-to site file and folder syncing
Make sure branches or teams always have up-to-date local copies of crucial documents and data by syncing folders one or two-way using Synology Drive ShareSync. Let your Synology systems update files across locations with each change to efficiently keep all stakeholders on the same page.
Efficient cross-site syncing through the cloud
Securely synchronize files and data from the HD6500 to Synology systems across different sites or offices, and back, by leveraging hybrid cloud technology with Synology Hybrid Share.4 Synchronize large sets of data to the cloud, and leverage the powerful bandwidth of our data centers to stream requested files to local NAS deployed at branch offices, no matter their size. Frequently used files are kept stored on local NAS to provide users access at LAN speeds and can also be pinned manually to prevent them from being removed from the cache.
Central backup server
Protect large numbers of PCs, servers, Synology systems, and hypervisors, or back up your backup servers with a central storage solution.

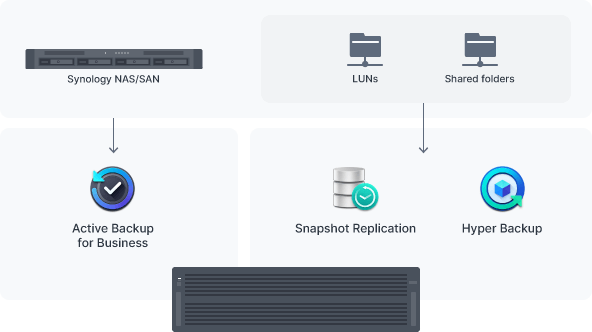

Back up Synology storage systems
Backup destination for shares and LUNs
Use Hyper Backup to back up files, LUNs, installed applications, and system configurations from tens or hundreds of Synology servers to your HD6500. Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, reduce backup sizes with built-in deduplication, and restore data flexibly with multi-versioning. Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.
Bare-metal backup for Synology NAS
Centrally manage bare-metal backups of all your Synology servers from a single centralized console on your HD6500. Leverage built-in deduplication technology to reduce backup sizes, and multi-versioning to allow flexible restoration.

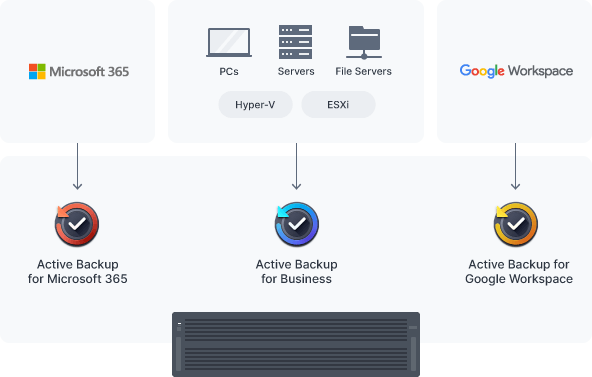

Back up Windows and Linux endpoints
Bare-metal PC, server, and VM backup
Securely back up Windows clients and servers, Linux endpoints, Synology servers, and VMware and Hyper-V virtual machines to the HD6500 with Active Backup for Business. Coordinate all data protection from the centralized management console and choose between bare-metal or file-level restoration, while leveraging built-in deduplication technology to reduce backup sizes.
SaaS protection with local backups
Protect full Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.
Main surveillance storage
Manage distributed deployments of hundreds of local recording servers and thousands of IP cameras centrally.

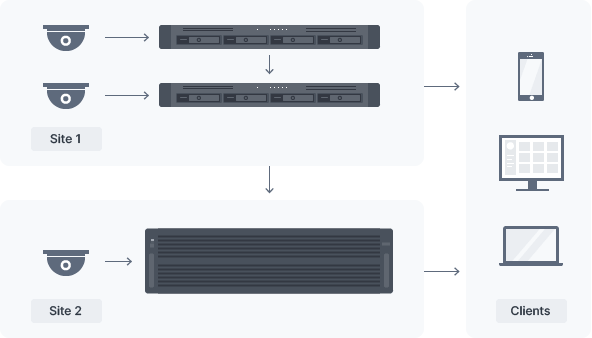

Centralized, secure, and scalable surveillance
Flexible scaling and expansion
Connect up to 150 IP cameras5 from a selection of over 8,300 validated models to the HD6500 itself, or connect hundreds more by adding recording servers at the edge. Easily add storage as deployments grow.
Central management and recording
Manage up hundreds of Synology NAS or NVR recording servers from one host, store copies of all or some recordings centrally, and monitor all streams from one interface with Surveillance Station Centralized Management System.
Secure and private video storage
Set detailed access rules to define which users can view live streams or recordings, and protect footage against unauthorized access with industry-standard AES-256 encryption.
Anywhere access with multiple clients
Watch and analyze live streams or recordings from web browsers, desktop clients, or mobile apps.
Advanced deployment and analysis options
Batch and automated camera deployment
Automatically locate cameras within a set IP range or configure units in batch via spreadsheet import, and conveniently replicate settings to new cameras.

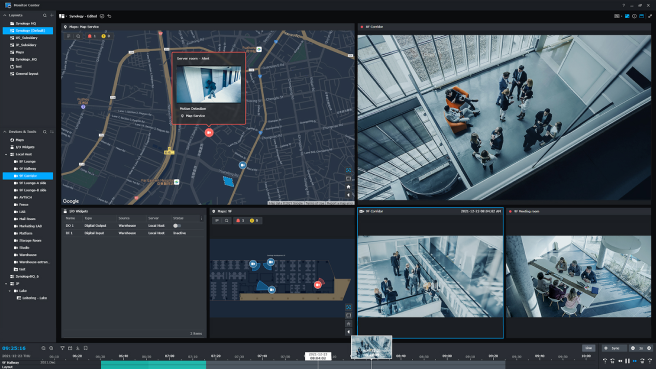

Instant event streaming on multi-location maps
Preview footage directly on multi-floor, multi-location maps when events are detected to stay on top of your deployment, with Google Maps and OpenStreetMap integration to make geographically spread-out deployments easier to monitor.
Dual recording, locally and to the cloud
Record each camera’s footage to two Synology servers simultaneously for added redundancy and instant access — for instance, to a smaller device at the edge and a larger central management server. Stream feeds directly to the cloud with C2 Surveillance for fast access and convenient sharing whenever you need evidence.
Event detection and smart analytics options
Add support for deep learning-powered algorithms and detection profiles such as intrusion detection, license plate recognition, congestion alerts, and face recognition by joining Deep Learning NVR servers to your deployment.
Get more with Synology DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Secure data with comprehensive built-in security tools to protect your devices against evolving threats.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
The HD6500 is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

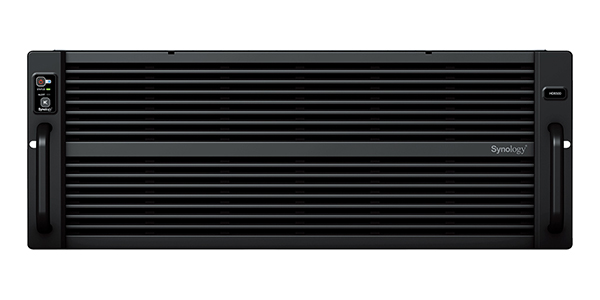

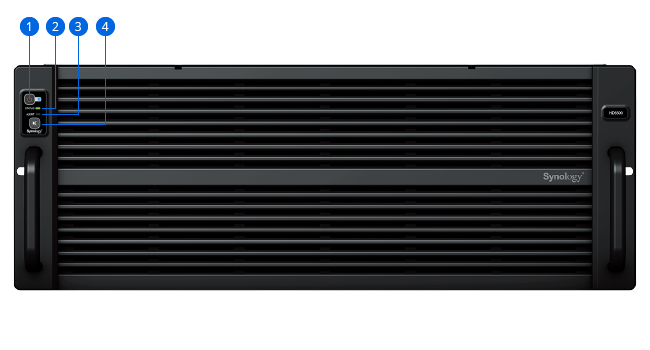

- Power Button and Indicator
- Status Indicator
- Alert Indicator
- Mute Button

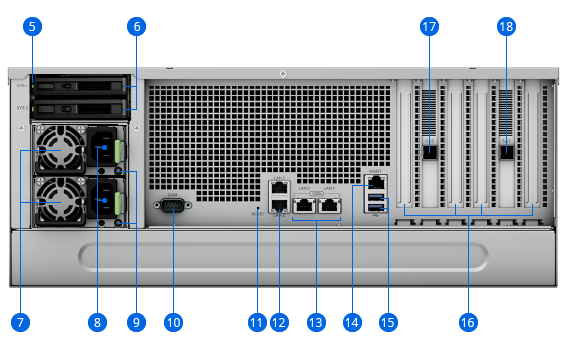

- System Drive Status Indicators
- System Drive Trays

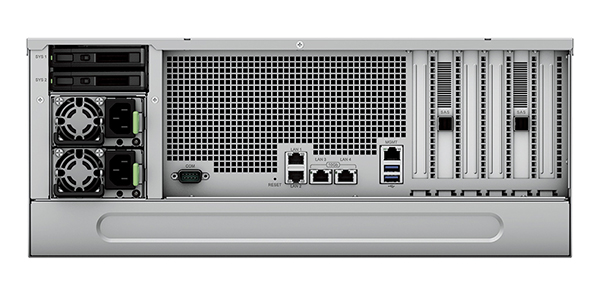

- PSU Fans
- Power Port
- PSU Indicators
- Console Port
- Reset Button
- 1GbE RJ-45 Ports
- 10GbE RJ-45 Ports
- Management Port
- USB 3.2 Gen 1 port
- PCI Express Expansion Slots
- SAS OUT Port (Primary)
- SAS OUT Port (secondary)

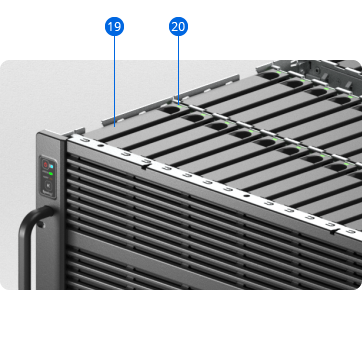

- Drive Trays
- Drive status indicator
|HD6500 Hardware Specifications:|
|CPU||2 x Intel Xeon Silver 4210R 10-core 2.4 GHz, Turbo Boost up to 3.2 GHz|
|Hardware encryption engine||Yes (AES-NI)|
|Memory||64 GB DDR4 ECC RDIMM (expandable up to 512 GB)|
|Compatible drive type||
|Hot swappable drive||Yes|
|Form factor||Rackmount 4U|
|Size (Height x Width x Depth)||
|Wake on LAN/WAN||Yes (only on 1GbE ports)|
|Scheduled power on/of||Yes|
|System fans||4 x (80 x 80 x 38 mm)|
|AC input power voltage||200 V to 240 V AC|
|Power Frequency||50/60 Hz, single phase|
|Maximum operating altitude||5,000 m (16,400 ft)|
|General DSM specification|
|Networking protocol||SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP)|
|Supported RAID type||Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10|
|SSD cache||Not supported|
|File sharing capability||
|Privilege||Windows Access Control List (ACL), application privileges|
|Directory service||Connects with Windows AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials|
|Security||Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite)|
|Supported browser||Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets|
|File Server & Synchronization|
|Cloud Sync||Offers one or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers and Yandex Disk|
|Drive||Synchronizes files across Windows, macOS, Linux, Android and iOS. The built-in cross-platform portal allows access to data anytime and anywhere
|File Station||Provides virtual drives, remote folders, Windows ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs|
|FTP Server||Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs.|
|Hybrid Share||Efficiently synchronizes files across sites by keeping shared data on Synology C2 Storage and streaming files to Synology NAS worldwide on request. Frequently requested files are cached at each site for low-latency access.|
|Presto File Server||Enables high-speed data transfer over WAN through the exclusive SITA technology between Synology NAS and desktop platforms|
|Universal Search||Search through files, metadata, and more on your NAS. Integration with Windows Search and macOS Spotlight makes it easy to find files|
|Migration Assistant||Migrates data, system setting, and applications seamlessly from one Synology NAS to another to ensure maximum service availability|
|SAN Storage & Virtualization|
|Virtual Machine Manager||Supports running Windows, Linux, and Virtual DSM-based virtual machines on Synology NAS|
|Data Protection & Backup Solution|
|Active Backup for Business||An all-in-one backup solution designed for heterogeneous business IT environments. It enables IT admins to remotely manage and protect PCs, servers, and VMs from one centralized console|
|Active Backup for Google Workspace||Supports backup and restoration of Google Workspace My Drive, Team Drive, Gmail, Contacts, and Calendar|
|Active Backup for Microsoft 365||Supports backup and restoration of Microsoft 365 OneDrive for Business, Outlook, Contacts, and Calendar|
|Hyper Backup||Supports local backup, network backup, and data backup to other devices, Synology NAS, and public clouds including C2 Storage|
|Synology High Availability||Reduces service downtime by combining two identical NAS into a high-availability cluster|
|Productivity & Collaboration|
|Collaboration tools||Collaborate with instant messaging service Synology Chat, online documents editor Synology Office, and scheduling assistant Synology Calendar
|Note Station||A note taking platform that supports rich text, note organization and versioning, encryption, sharing, media embedding, and attachments|
|Synology MailPlus Server||A secure, reliable, and private mail solution featuring high-availability, load balancing, security, and filtering options|
|Synology MailPlus||An intuitive webmail interface for Synology MailPlus Server with configurable mail labels, filters, and user interface|
|Surveillance Station||Maximum IP cameras: 150, for a total of 4,500 FPS at 720p (H.264)|
|Management & Administration|
|Central Management System||Provides a single interface to manage and monitor multiple Synology NAS models|
|Synology Directory Server||Provide a flexible and cost-effective domain controller solution|
|Active Insight||Monitor health statistics, login activity, and backup statuses for your Synology servers worldwide, and receive notifications and advice from our centralized cloud-hosted management platform|
|Storage Analyzer||Displays volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, and least recently accessed files.|
|Antivirus Essential||Provides full system scans, scheduled scans, white list customization, and auto-update of virus definitions.|
|Web Station||Enables hosting for up to 30 websites with support for PHP/MariaDB and 3rd-party applications.|
|Other packages||DNS Server, RADIUS Server, and Log Center|
|iOS/Android applications||Synology Drive, Synology MailPlus, Synology Secure SignIn, Synology Chat, Synology LiveCam, Synology Photos, Synology Active Insight, DS audio, DS photo, DS video, DS cam, DS file, DS finder, and DS note|
|Other packages||Additional 3rd-party packages are available in the Package Center|
|Environment and Packaging|
|Environment safety||RoHS compliant|
Download the Synology High Density HD6500 Datasheet (PDF).
