Synology RackStation RS4021xs+
Enterprise NAS with built-in service continuity engineered for data-intensive applications
Click here to jump to more pricing!
Overview:
Synology RackStation RS4021xs+ is a powerful 16-bay 3U storage solution designed for high throughput and data integrity, made with built-in redundant power. Equipped with an 8-core processor and upgradable to 64 GB memory, the RS4021xs+ is capable of hosting demanding services involving virtualization, mail, office collaboration, and surveillance, to meet the unique requirements of enterprise.
- Accelerated Performance
Up to 234,698 random read IOPS and 6,258 MB/s sequential read performance - Powerful Compute
Host multiple compute-intensive services with its 8-core Intel processor - Upgradability
Two PCIe expansion slots allow for M.2 NVMe cache adapters and high-bandwidth network cards - Redundant Power
Ensure business continuity with two redundant power supplies - On-demand Scalability
Supports up to 40 drive bays using two RX1217(RP)
CPU
Intel Xeon D-1541 8-core 2.1 GHz
Networking
Built-in dual-port 10GbE
Memory
16 GB ECC DDR4 Up to 64 GB
Scalability
Up to 40 drive bays with RX1217(RP)
Features:
Engineered for service continuity
The RS4021xs+ ensures mission-critical data is always available, enabling businesses to deliver the best results, even in the face of disaster.
Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.
Near-zero downtime
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.
Customize to your business
The RS4021xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment.
- Double bandwidth
Upgrade network bandwidth in minutes by 2x or more with Synology’s range of 10GbE NICs. - SSD cache
Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs or by installing one or more 2.5” SAT5200 SSDs. - Storage expansion
Quickly and easily scale up to 40 drives with two RX1217(RP) expansion units.
Keep disaster at bay
Hyper Backup
A comprehensive backup and recovery solution for added data protection. Create backup destinations locally, on another Synology device, rsync servers, or cloud-based destinations, such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2 Storage, a dedicated backup destination for Synology devices. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage use.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Backup your entire IT infrastructure
Active Backup Suite
Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.
Fully certified storage virtualization solutions
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.
Complete surveillance solution
Synology Surveillance Station transforms the RS4021xs+ into a feature-packed Network Video Recorder solution. Support for up to 90 IP cameras5 and video analytics such as motion detection, no idle zone, foreign object detection, and anomaly detection cater to the most common surveillance scenarios.
- Secure and private
AES-256 encryption adds additional security to the locally-stored footage. - Access from anywhere, anytime
Access recordings and live streams whenever you want using a web browser, desktop client, or the DS cam mobile app. - Real-time alerts
Email, SMS, or push notifications alert you when incidents occur or predefined conditions are met.
Powered by Synology DiskStation Manager
The RS4021xs+ runs Synology DiskStation Manager (DSM), the web-based operating system equipped with powerful applications and services for business.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Synology Drive
Instantly access your NAS files across multiple devices whenever you want, wherever you are.
Collaboration Suite
Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Security
Secure data with comprehensive built-in security tools to protect your devices against evolving threats.
Public Cloud Integration
Back up and synchronize data easily between public cloud accounts and your NAS.
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
- SATA: 3.5” HDD HAT5300
- NVMe: M.2 SSD SNV3000
- SATA: 2.5” SSD SAT5200
5-year warranty
At Synology, we are committed to product innovation and quality. The RS4021xs+ is backed by a 5-year limited warranty that includes technical support and hardware replacement services to maximize your return on investment.

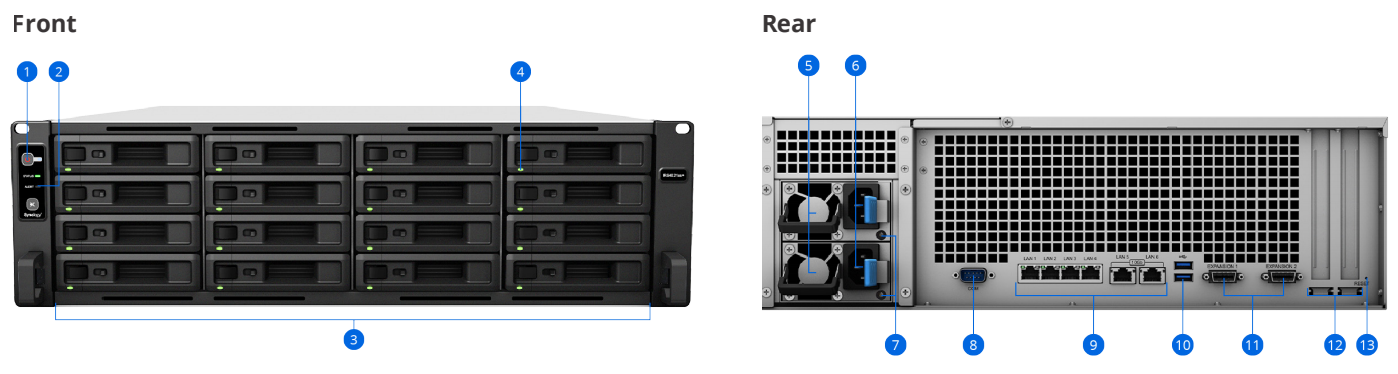

Specifications:
- Power Button & Indicator
- Alert Off Button
- Drive Trays
- Drive Status Indicator
- PSU Fans
- Power Ports
- PSU Indicators & Alert Off Buttons
- Console Port
- 1GbE/10GbE RJ-45 Ports
- USB 3.2 Ports
- Expansion Ports
- PCIe Expansion Slots
- Reset Button
| RackStation RS4021xs+ Hardware Specifications: | |
|---|---|
| Hardware Specifications | |
| CPU | Intel Xeon D-1541 8-core (16-thread) 2.1 GHz, Turbo Boost up to 2.7 GHz |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | 16 GB DDR4 ECC UDIMM (expandable up to 64 GB) |
| Compatible drive type |
|
| Hot swappable drive | Yes |
| External port |
|
| Form factor | Rackmount 3U |
| Size (Height x Width x Depth) | 132.3 x 482 x 656.5 mm (with server handles) |
| Weight | 17.4 kg |
| LAN port |
|
| Wake on LAN/WAN | Yes |
| PCIe 3.0 slot |
|
| Scheduled power on/of | Yes |
| System fan | 3 x (80 x 80 x 32 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power Frequency | 50 to 60Hz, single phase |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| General DSM specification | |
| Networking protocol | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| File system |
|
| Supported RAID type | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage management |
|
| SSD cache |
|
| File sharing capability |
|
| Privilege | Windows Access Control List (ACL), application privileges |
| Directory service | Windows AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration |
| Virtualization | VMware vSphere 6.5, Microsoft Hyper-V, Citrix, OpenStack |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite) |
| Supported client | Windows 7 onwards, macOS 10.12 onwards |
| Supported browser | Chrome, Firefox, Internet Explorer 11 onwards, Safari 11 onwards; Safari (iOS 11 onwards), Chrome (Android™ 6.0 onwards) |
| File Server & Synchronization | |
| Drive | Provide a universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android™ and iOS. The built-in universal portal allows you to access data anytime and anywhere.
|
| File Station | Provides virtual drives, remote folders, Windows ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs. |
| FTP Server | Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs. |
| Presto File Server | Enables high-speed data transfer over WAN through the exclusive SITA technology between Synology NAS and desktop. |
| Cloud Sync | Offers one or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Amazon S3- compatible storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers and Yandex Disk. |
| Universal Search | Enables global search of applications and files. |
| File Server & Synchronization | |
| iSCSI Manager |
|
| Virtual Machine Manager | Deploy and run various virtual machines on Synology NAS, including Windows®, Linux®, or Virtual DSM |
| Data Protection & Backup Solution | |
| Hyper Backup | Support local backup, network backup, and data backup to public clouds |
| Backup tools |
|
| Snapshot Replication |
|
| Synology High Availability | Reduce service downtime by setting up two identical NAS into one high-availability cluster |
| Active Backup for G Suite | Supports backup and restoration of Google Workspace My Drive, Team Drive, Gmail, Contacts, and Calendar. |
| Active Backup for Microsoft 365 | Supports backup and restoration of Microsoft 365 OneDrive for Business, mail, contacts, and calendar. |
| Active Backup for Business | An all-in-one backup solution designed for heterogeneous business IT environments. It enables IT admins to remotely manage and protect PCs, servers, and VMs from one centralized console. |
| Productivity & Collaboration | |
| Collaboration tools | Users can collaborate through the instant messaging service Synology Chat, the online editor Synology Office, and the scheduling assistant Synology Calendar.
|
| Note Station | A note taking platform that supports rich text, note organization and versioning, encryption, sharing, media embedding, and attachments. |
| Synology MailPlus Server | A secure, reliable, and private mail solution featuring high-availability, load balancing, security, and filtering. |
| Synology MailPlus | An intuitive webmail interface for Synology MailPlus Server with customizable mail labels, filters, and user interface. |
| Multimedia | |
| Moments | A feature-rich photo management application that includes AI-powered album creation from facial and subject recognition, photo editing and sharing capabilities, similar photo detection for duplicate management, auto-editing functions such as color correction and angle adjustments, and auto-selection of the best shots. Mobile applications are available on iOS and Android™ devices. |
| Other packages | Video Station, Photo Station, Audio Station, iTunes Server |
| Surveillance | |
| Surveillance Station | Maximum IP cameras: 90, for a total of 2,700 FPS at 720p (H.264) |
| All-in-One Server | |
| Synology Directory Server | Provide a flexible and cost-effective domain controller solution |
| Central Management System | Provide a single interface to manage and monitor multiple Synology NAS |
| VPN Server |
|
| Mail Server |
|
| Mail Station | Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customizable SMTP server |
| Web Station | Enables hosting for up to 30 websites with support for PHP/MariaDB and 3rd-party applications. |
| Other packages | DNS Server, RADIUS Server, Log Center |
| Others | |
| Storage Analyzer | Displays volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, and least recently accessed files. |
| Antivirus Essential | Provides full system scans, scheduled scans, white list customization, and auto-update of virus definitions |
| iOS/Android™ applications | Synology Drive, Synology MailPlus, Synology Chat, Synology LiveCam, Moments, DS audio, DS photo, DS video, DS cam, DS file, DS finder, DS note |
| Other packages | Additional 3rd-party packages available on Package Center |
| Certifications and Packaging | |
| Environment safety | RoHS compliant |
| Package content |
|
| Optional accessories |
|
| Warranty | 5 Years |
Documentation:
Download the Synology RackStation RS4021xs+ Datasheet (PDF).
