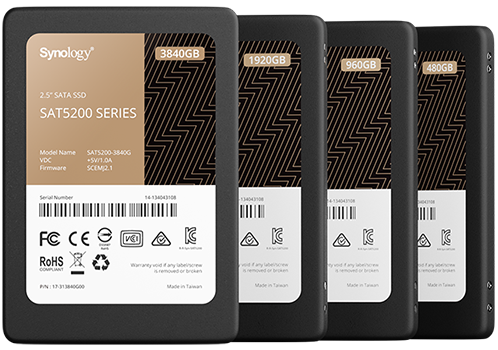

Synology 2.5″ SATA SSD SAT5200
Modernize storage infrastructure with Synology solid-state drives

Overview:

Enterprise-grade SSD built for Synology systems

Synology SAT5200 SATA SSD offers stable I/O performance while reducing the latency of critical services and applications. It is built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

---

Stable high performance for demanding environments

Engineered for demanding environments such as online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 delivers stable high performance at up to 67,000 4K random write IOPS, allowing firms to modernize existing storage infrastructure effortlessly.¹

---

Enterprise-grade endurance and reliability

1.3 DWPD
Provides 1.3 DWPD within the 5-year warranty period to withstand 24/7 intensive workloads.²

End-to-end data protection
Safeguards data integrity and consistency over the entire data transfer path.

Power loss protection circuit design
Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.

---

Lifetime analytics based on actual workload

Full integration with Synology’s DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 unit based on actual workloads³:

Timely Notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.

Optimal Use
Easy monitoring allows you to make optimal use of each SSD.

Notes:

1. Performance was measured using FIO on Linux with Queue Depth 32 (4 KB = 4,096 bytes).
2. The endurance rating was calculated based on a JESD219A enterprise workload.
3. DSM version requirement: 6.2.3-25426 or later version

Hardware Specifications:

	SAT5200-480G	SAT5200-960G	SAT5200-1920G	SAT5200-3840G
General
Capacity	480 GB	960 GB	1920 GB	3840 GB
Form factor	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm
Interface	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s
Performance
Sequential Read (128KB, QD32)	530 MB/s	530 MB/s	530 MB/s	530 MB/s
Sequential Write (128KB, QD32)	500 MB/s	500 MB/s	500 MB/s	500 MB/s
Random Read (4KB, QD32)	95,000 IOPS	98,000 IOPS	98,000 IOPS	98,000 IOPS
Random Write (4KB, QD32)	55,000 IOPS	67,000 IOPS	60,000 IOPS	58,000 IOPS
Endurance and Reliability
Terabytes Written (TBW)*	1,145 TB	2,290 TB TB	4,581 TB	9,162 TB
Drive Writes Per Day (DWPD)	1.3	1.3	1.3	1.3
Mean Time Between Failures (MTBF)	1.5 million hours	1.5 million hours	1.5 million hours	1.5 million hours
Uncorrectable Bit Error Rate (UBER)	< 1 sector per 1017 bits read	< 1 sector per 1017 bits read	< 1 sector per 1017 bits read	< 1 sector per 1017 bits read
Power Loss Protection
Warranty*	5 years	5 years	5 years	5 years
Notes	Based on the JESD219A enterprise workload. 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first.
Power Consumption
Supply voltage	5V (± 5%)	5V (± 5%)	5V (± 5%)	5V (± 5%)
Active Read (Typ.)	2.6 W	2.9 W	3.1 W	3.6 W
Active Write (Typ.)	4.2 W	4.6 W	5.1 W	6.2 W
Idle	1.4 W	1.5 W	1.6 W	1.9 W
Notes	Power consumption may differ according to configurations and platforms.
Temperature
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Others
Size (H x W x D)	7 mm x 69.85 mm x 100 mm
Certification	FCC, CE, EAC, BSMI, VCCI, RCM, KC, RoHS

Documentation:

Download the Synology 2.5″ SATA SSD SAT5200 Datasheet  (PDF).
