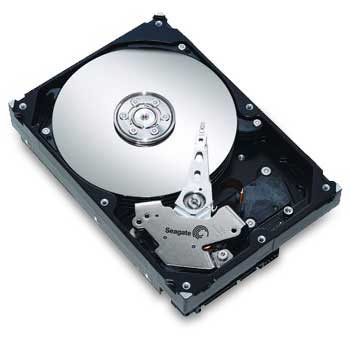

Seagate Barracuda 7200.12:
Desktop SATA Hard Drives
Combining state-of-the-art technology and industry-leading manufacturing expertise, the Seagate® Barracuda® 7200.12 drive—the 12th generation of this award-winning desktop hard drive family—delivers 320 GB of high-performing, eco-friendly digital storage. Designed with industry-leading acoustics and low power levels.
Maximizes hard drive storage densities
Barracuda 1TB-per-disk technology incorporates 340,000 unique tracks in the width of a single inch. This incredible storage density drives new capacity possibilities and lowers your total storage costs.
Seagate AcuTrac™ technology enables new storage densities with accurate reading and writing to nano-sized tracks that are only 75 nanometers wide! That’s about 500 times smaller than the period at the end of this sentence.
Green where it counts
Barracuda® 1TB-per-disk hard drives now have advanced power modes to save more energy while in idle states–without sacrificing performance. Barracuda desktop drives are produced using the most sophisticated manufacturing process in the industry, with a focus on environmental stewardship.
- Barracuda® drives comply with the RoHS directive on hazardous materials and voluntarily restrict halogen compounds.
- 70% or more of the materials used to build Barracuda drives are recyclable.
- Low power consumption
Your no-hassle transition to 4K sectors
Are you worried about moving to Advanced Format 4K sector technology? You don’t have to be with Barracuda drives. Seagate SmartAlign™ technology makes this transition a snap:
- No utilities to run
- No extra integration steps to take up your time
Go beyond 2TB with DiscWizard™ software
The sure way to get native access to hard drives bigger than 2TB is to adopt the new BIOS standard called UEFI. If you’re not there yet, Seagate has an alternative. Free DiscWizard™ software from Seagate provides you a means to effectively utilize your 3TB Barracuda® drive, even with Windows XP and using the standard PC BIOS. Get your free copy to go beyond 2TB today!
Key Advantages
- Double your capacity and drive down costs with the industry's first 1TB-per-disk hard drive technology.
- Up to 3TB capacity with 7200-RPM performance. Why compromise?
- SATA 6Gb/s interface optimizes burst performance
- Seagate AcuTrac™ servo technology delivers dependable performance, even with hard drive track widths of only 75 nanometers.
- Seagate OptiCache™ technology boosts overall performance by as much as 45% over the previous generation.
- Seagate SmartAlign™ technology provides a simple, transparent migration to Advanced Format 4K sectors.
- Free Seagate DiscWizard™ software allows you to install a 3TB hard drive in Windows, including XP, without UEFI BIOS.
Best-Fit Applications
- Desktop or all-in-one PCs
- Home servers
- PC-based gaming systems
- Desktop RAID
- Direct-attached external storage devices (DAS)
- Network-attached storage devices (NAS)
|
 |
| Specifications |
ST31000524AS |
ST2000DM001 |
ST3000DM001 |
| Interface |
SATA 6Gb/s NCQ |
SATA 6Gb/s NCQ |
SATA 6Gb/s NCQ |
| Rotational speed (RPM) |
7200 |
7200 |
7200 |
| Cache (MB) |
32 |
64 |
64 |
| Transfer Rate, Max Ext (MB/s) |
600 |
600 |
600 |
| Sustained Data Rate OD (MB/s) |
125 |
210 |
210 |
| Average Latency (ms) |
4.17 |
4.16 |
4.16 |
| Seek Average, Read (ms) |
<8.5 |
<8.5 |
<8.5 |
| Seek Average, Write (ms) |
<9.5 |
<9.5 |
<9.5 |
| SATA Transfer Rates Supported (Gb/s) |
6.0/3.0/1.5 |
6.0/3.0/1.5 |
6.0/3.0/1.5 |
| Heads/Disks |
2/1 |
6/3 |
6/3 |
| Bytes per Sector |
512 |
4096 |
4096 |
| Voltage Tolerance, Including Noise (5V) |
+10%/–5.0% |
+10%/–5.0% |
+10%/–5.0% |
| Voltage Tolerance, Including Noise (12V) |
+10%/–7.5% |
+10%/–7.5% |
+10%/–7.5% |
| Contact Start/Stop Cycles |
— |
— |
— |
| Load/Unload Cycles |
300,000 |
300,000 |
300,000 |
| Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E14 |
1 per 10E14 |
1 per 10E14 |
| Annualized Failure Rate (AFR) |
<1% |
<1% |
<1% |
| Power-On Hour |
2400 |
2400 |
2400 |
| Startup Power (A) |
2.0 |
2.0 |
2.0 |
| Operating Mode, Typical (W) |
<9.4 |
8.0 |
8.0 |
| Idle2 Average (W) |
— |
5.40 |
5.40 |
| Idle Average (W) |
<5.0 |
— |
— |
| Operating Temperature |
0 to 60 |
2.0 |
2.0 |
| Nonoperating Temperature |
–40 to 70 |
8.0 |
8.0 |
| Height (in/mm) |
1.028/26.11 |
1.028/26.11 |
1.028/26.11 |
| Width (in/mm) |
4.00/101.6 |
4.00/101.6 |
4.00/101.6 |
| Depth (in/mm) |
5.787/146.99 |
5.787/146.99 |
5.787/146.99 |
| Weight (lb/kg) |
1.4/0.64 |
1.3/626 |
1.3/626 |
1 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to hard drive capacity.
Documentation:
Seagate Barracuda Datasheet (.PDF)

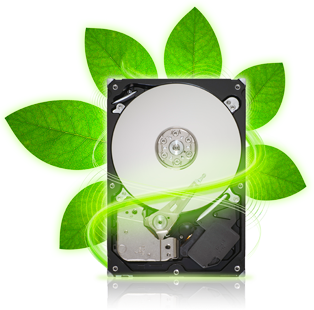

Seagate Barracuda Green:
Desktop Green SATA Hard Drives
Green power that won't slow you down
Barracuda® Green drives from Seagate save you time. Available now with SATA 6Gb/s interface and 64MB cache and combined with the industry's only 5900-RPM spin speed, you can be sure you're getting the best performance in the green-power drive category.
Seagate SmartAlign™ technology simplifies your transition to the Advanced Format (AF), 4K standard. There is no need for time-consuming integration utilities required by similar AF drives.
Barracuda Green Drives Save Time
The Seagate® Barracuda Green drive saves you time with a combination of fast performance and no-hassle hard drive integration.
- Delivering sustained data throughput up to 144MB/s, the Barracuda Green drive sets a new standard for performance in the eco-drive category.
- Seagate SmartAlign technology delivers a new level of simplicity for Advanced Format 4K drives. While other Advanced Format drives require the use of additional software utilities during integration, the Barracuda Green drive with Seagate SmartAlign technology requires no extra time or steps.
The Barracuda Green drive delivers on the product promise—Green power that won't slow you down!
Key Advantages
- A unique 5900-RPM platform delivers the fastest performance of any
eco friendly drive available.
- Seagate SmartAlign™ technology provides the benefits of the new Advanced Format 4K sector standard without the hassle—no utilities,
no extra steps.
- Plenty of capacity for storage-hungry applications
- The SATA 6Gb/s interface and 64MB cache maximize performance, especially in cache-intensive applications.
- Low power consumption combined with leadership in the use of materials that conform to environmental compliance programs means you don't have to sacrifice environmental stewardship for performance.
- Cool, quiet operation
Best-Fit Applications
- High-capacity desktop storage
- Direct Attached Storage devices—USB/FireWire/eSATA
- Network Attached Storage devices and Windows storage servers
- Eco friendly PCs
|
|
| Specifications |
ST2000DL003 |
| Interface |
SATA 6Gb/s NCQ |
| Spindle Speed (RPM) |
5900 |
| Cache, Multisegmented (MB) |
64 |
| SATA Transfer Rates Supported (Gb/s) |
6.0/3.0/1.5 |
| Average Latency (ms) |
4.16 |
| Average Seek, Typical Read (ms) |
12 |
| Average Seek, Typical Write (ms) |
13 |
| Power On to Ready (sec) |
<17 |
| Sustained Data Rate OD (MB/s) |
144 |
| Bytes per Sector |
4096 |
| Startup Current +12V Peak (A, ±10%) |
+10%/–7.5% |
| Operating, Average (W) |
+10%/–7.5% |
| Load/Unload Cycles (25°C, 50% Humidity) |
300,000 |
| Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E14 |
| Annualized Failure Rate (AFR) |
0.34% |
| Operating, Average (W) |
5.8 |
| Idle Mode (W) |
4.5 |
| Standby Mode (W) |
0.5 |
| Sleep Mode (W) |
0.5 |
| Startup Current +12V Peak (A±10%) |
2.0 |
| Operating Temperature |
0 to 60 °C |
| Nonoperating Temperature |
–40 to 70 °C |
| Shock, Operating: 2 ms (Gs) |
80 |
| Shock, Nonoperating: 1 ms (Gs) |
300 |
| Height (in/mm) |
26.1/1.028 |
| Width (in/mm) |
101.6/4.0 |
| Depth (in/mm) |
147.00/5.78 |
| Weight (lb/kg) |
635/1.39 |
1 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to hard drive capacity.
Documentation:
Seagate Barracuda Green Datasheet (.PDF)

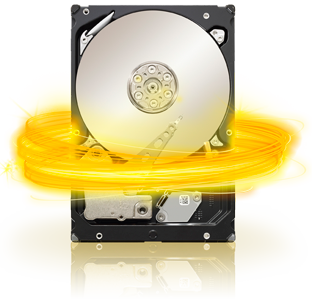

Seagate Barracuda XT:
Desktop Hard Drives
No compromise. Speed and capacity for high-performance desktop systems
The Barracuda® XT drive now brings 3TB of capacity
to the desktop, breaking the 2.1TB desktop storage
capacity boundary with the first non-hardware,
comprehensive 3TB solution. Seagate® DiscWizard™
software allows computer systems to access 3TB
capacity—even on legacy Microsoft XP-based systems.
We recognize the need for products tuned to the
unique needs of different computing platforms and
applications. The Barracuda family of desktop storage
options now includes:
- Barracuda Green drives—Engineered specifically
for low-power-focused applications, such as directattached
external storage or low-power-focused
desktop computing
- Barracuda drives—The industry standard for
mainstream desktop computing offering a wide range
of capacities and cache options, a core 7200-RPM
performance platform and now supporting the new
SATA 6Gb/s interface on all capacities
- Barracuda XT drives—The performance leader in
the family, with maximum capacity, cache and SATA
performance for the ultimate in desktop computing
Performance, Capacity and Peace of Mind
- Maximize your system performance with the
industry’s biggest cache available—64MB.
- Help future-proof your storage with the new SATA
6Gb/s interface, which is fully compatible with legacy
SATA controllers while also providing an upgrade
path to a host of new SATA 6Gb/s motherboards and
hard drive controllers.
- Backed by the Seagate 5-Year Limited Warranty, you
can rest easy knowing your Barracuda XT hard drive
will provide you with years of worry-free operation.
Key Advantages
- Massive 3TB and 2TB capacity options provide plenty of room for
downloading today’s storage-craving PC games or storing many hours
of high-definition video content.
- The first comprehensive, non-hardware solution to accessing 3TB
capacity by using Seagate® DiscWizard™ software
- The 7200-RPM performance platform complements high capacity,
delivering a powerful combination of extreme storage and top-end
desktop performance.
- A 64MB cache optimizes burst performance and reduces data
throughput bottlenecks.
- The SATA 6Gb/s interface enables the use of the industry’s newest and
fastest hard drive controllers while providing backward compatibility to
legacy SATA 1.5Gb/s or 3Gb/s systems.
Best-Fit Applications
- High-performance PC gaming systems
- High-definition video editing and production systems
- Home servers and workstations
- Desktop RAID
- FireWire 800- or eSATA-enabled external storage devices
|
|
| Specifications |
ST33000651AS |
ST32000641AS |
| Interface |
SATA 6Gb/s NCQ |
SATA 6Gb/s NCQ |
| Transfer Rate, Max Ext (MB/s) |
600 |
600 |
| Sustained Data Rate OD (MB/s) |
149 |
138 |
| Cache (MB) |
64 |
64 |
| Average Latency (ms) |
4.16 |
4.16 |
| Rotational speed (RPM) |
7200 |
7200 |
| Heads/Disks |
10/5 |
8/4 |
| Bytes per Sector |
512 |
512 |
| Load/Unload Cycles |
300K |
300K |
| Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E14 |
1 per 10E14 |
| Annualized Failure Rate (AFR) |
0.34% |
0.34% |
| Mean Time Between Failures (hours) |
750,000 |
750,000 |
| Startup Current +12V Peak (A, ±10%) |
2.0 |
2.8 |
| Standby, Average (W) |
0.55 |
0.57 |
| Operating, Average (W) |
9.23 |
9.23 |
| Idle, Average (W) |
7.37 |
6.39 |
| Operating Temperature |
5 to 60 °C |
5 to 60 °C |
| Nonoperating Temperature |
–40 to 70 °C |
–40 to 70 °C |
| Shock, Operating: 2 ms (Gs) |
63 |
63 |
| Shock, Nonoperating: 2 ms (Gs) |
300 |
300 |
| Acoustics (bels – sound power) |
Idle: 2.7
Seek: 2.9 |
Idle: 2.7
Seek: 2.9 |
| Height (in/mm) |
1.028/26.1 |
1.028/26.1 |
| Width (in/mm) |
4.010/101.85 |
4.010/101.85 |
| Depth (in/mm) |
5.787/146.99 |
5.787/146.99 |
| Weight (lb/kg) |
1.543/700 |
1.543/700 |
1 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to hard drive capacity.
Documentation:
Seagate Barracuda XT Datasheet (.PDF)

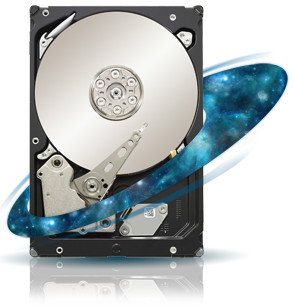

Seagate Constellation ES:
Seamless Enterprise Hard Drives
High-Capacity Storage Designed for Seamless Enterprise Integration
The Seagate
Constellation ES drive is the fifth-generation 3.5-inch
hard drive for capacity-optimized 7200-RPM enterprise environments.
It enables cost-effective, highly efficient enterprise storage solutions
with high capacities, best-in-class reliability, leading 6Gb/s performance,
optimized power and cooling, and government-grade data security—all
backed by world-class Seagate enterprise service and support.
The Constellation ES drives are a family of high-capacity enterprise-class
hard drives capable of storing an unprecedented 76TB per square foot
(in its 2TB capacity), maximizing data center floor space at a low $/GB.
Be completely assured knowing this nearline drive optimizes your
3.5-inch chassis performance with the lowest power draw (less than 7.3W),
running cooler in higher-temperature environments. This is perfect for
enterprise-tiered storage solutions or small-to-medium businesses,
which lack the luxury of a temperature-controlled data center.
Employed by industry-leading enterprise OEMs, system builders and
integrators who build cost-effective, high-capacity and eco-friendly
enterprise-class server and storage solutions, the Constellation ES drive
is the first drive that offers both the industry-leading 6Gb/s SAS interface—
with its proven scalability, performance and enterprise features—and the
traditional SATA interface for seamless enterprise integration. With large
capacity drives comes longer RAID rebuild times, but with the new Seagate
RAID Rebuild™ development platform, customers can significantly shorten
rebuild times and minimize productivity losses while protecting critical data.
The Constellation ES drive extends the industry's best field-proven
reliability into a high-capacity nearline drive based on world-renowned
Seagate enterprise experience, including support, design, lifecycle
management and eco-system compatibility. This capacity-optimized
drive offers an MTBF of 1.2 million hours for economical, enterprise-grade
reliability. The Constellation ES implementation of 6Gb/s SAS improves
scalability, which makes this drive ideally suited for use in high-end,
high-capacity network storage solutions. It is the industry's first 3.5-inch
nearline drive to implement the new SAS 2.0 feature set and is the world's
first 3.5-inch nearline drive to operate at 6Gb/s transfer rates in both SAS
and SATA interfaces.
Key Features and Benefits
- Reduces design and support costs by building on the Seagate best-in-class enterprise storage foundation
- Features a range of high capacities—from 500GB to 2TB—in a 3.5-inch enterprise-class hard disk drive
- Offers a traditional 3.5-inch form factor with enhanced rotational vibration tolerance and high data integrity for enterprise-class reliability in a cost-effective drive
- Delivers proven reliability, with an MTBF* of 1.2 million hours and enhanced end-to-end data integrity with Protection Information feature
- Lets you choose a 6Gb/s Enterprise SATA or 6Gb/s SAS interface easing integration and delivering up to 2x the throughput of 3Gb/s nearline hard drives
- Reduces energy and cooling costs, with the lowest power consumption of any nearline 3.5-inch drive
- Includes Seagate PowerChoice™ technology for even greater on-demand power savings during slow or idle periods
- TCG-compliant, Self-Encrypting Drive (SED) security option eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes and allows organizations to securely repurpose or sell hard disk drives**
- Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data**
Key Advantages
- Fifth-generation, enterprise, nearline drive designed for 24×7 operation
- Up to 2TB capacity for data-hungry enterprise business applications
- Best-in-class rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access.
- Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings during slow or idle periods
- Seagate RAID Rebuild™ development platform significantly reduces hours of lost productivity.
- Multi-drive firmware maximized for enterprise system availability
- 6Gb/s SAS performance with error detection and correction (IOEDC/ IOECC) capabilities and PI (Protection Information)
- Self-Encrypting Drive (SED) option cuts IT drive retirement expenses while securely protecting data and is one of the easiest, most costeffective security measures you can implement.1
Best-Fit Applications
- High-capacity data center storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
- Cloud storage
|
|
| Specifications |
ST2000NM0011 |
ST31000524NS |
| Interface |
SATA 3Gb/s |
SATA 3Gb/s |
| Protection Information |
- |
- |
| Low Halogen |
Yes |
Yes |
| Self-Encrypted Drive (SED) Option |
Yes |
- |
| Rotational speed (RPM) |
7200 |
7200 |
| Seek Time, Average Read/Write (ms) |
8.5/9.5 |
8.5/9.5 |
| Max Sustained Transfer Rate (MB/s) |
140 |
140 |
| Cache, Multisegmented (MB) |
64 |
32 |
| Interface Access Speed (Gb/s) |
6.0, 3.0, 1.5 |
3.0, 1.5 |
| Rotational Vibration @ 1500Hz (rad/s2) |
12.5 |
12.5 |
| Bytes per Sector |
512 |
512 |
| Power-On Hours (annual) |
8760 |
8760 |
| Mean Time Between Failures (MTBF, hours) |
1.2 million |
1.2 million |
| Reliability Rating at Full 24x7 Operation (AFR) |
0.73% |
0.73% |
| Nonrecoverable Read Errors per Bits Read |
1 sector per 10E15 |
1 sector per 10E15 |
| IOEDC (I/O Error Dectection Code) |
Reads/Writes |
Reads/Writes |
| IOECC (I/O Error Correction Code) |
Writes |
Writes |
| Load/Unload Cycles (at 40°C) |
300,000 |
300,000 |
| Interface Ports |
Single |
Single |
| Power Supply Requirements |
+12V and +5V |
+12V and +5V |
| Idle (W) |
6.39 |
4.61 |
| Typical Operating Power (W): Random Read |
9.03 |
7.42 |
| Typical Operating Power (W): Random Write |
7.80 |
6.21 |
| PowerChoice™ Option (W) |
As low as 0.53 |
As low as 0.57 |
| Operating Temperature |
5 to 60 °C |
5 to 60 °C |
| Nonoperating Temperature |
–40 to 70 °C |
–40 to 70 °C |
| Vibration, Operating: 5 to 500Hz (Gs) |
0.25 |
0.25 |
| Vibration, Nonoperating: 10 to 500Hz (Gs) |
4.9 |
4.9 |
| Shock, Operating: 2 ms (Gs) |
70 |
70 |
| Shock, Nonoperating: 2 ms (Gs) |
300 |
350 |
| Height (in/mm) |
1.028/26.10 |
1.028/26.10 |
| Width (in/mm) |
4.010/101.85 |
4.010/101.85 |
| Depth (in/mm) |
5.787/147.00 |
5.787/147.00 |
| Weight (lb/kg) |
1.57/710 |
1.411/640 |
*Mean time between failures
**Not available in all models or countries. Requires TCG-compliant host or controller support. TM: The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian Governments.
1 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to hard drive capacity.
2 Self-Encrypting Drive model. Requires TCG-compliant host or controller support. Not available in all countries.
Documentation:
Seagate Constellation ES Datasheet (.PDF)
Seagate Constellation ES.2:
Seamless Enterprise Hard Drives
Capacity-Optimized Enterprise Hard Drives for Bulk-Data Applications
Built upon leading experience in enterprise
storage, the Constellation ES.2 drive maximizes
capacity while providing best-in-class features. The Constellation ES.2 drive significantly
improves performance with a 6Gb/s interface,
the first capacity-optimized drive with 6Gb/s
performance in both SAS and SATA interfaces. Improved data security comes from Self-
Encrypting Drive (SED) technology based on
the AES-256 standard and with FIPS 140-2.
Key Features and Benefits
- Industry’s highest capacity enterprise drive for sustaining demanding data growth
- Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data*
- Fifth-generation, capacity-optimized nearline drive designed for 24x7 enterprise reliability
- SAS-based, end-to-end data integrity and enhanced error correction for accurate data storage
- Best-in-class enhanced rotational vibration tolerance ensures consistent bulk data performance
- Improved power and cooling efficiencies with low power consumption and enhanced PowerChoice™ technology
- Multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor and ramp load technologies
- Self-Encrypting Drive (SED) models with secure erase technology cut IT drive retirement costs while securely protecting data where it lives - on the drive*
Key Advantages
- Highest-capacity enterprise drive for sustaining demanding data growth
- Fifth-generation capacity-optimized drive designed for 24×7 reliability
- SAS-based, end-to-end data integrity and enhanced error correction
for accurate data storage
- Best-in-class enhanced rotational vibration tolerance ensures
consistent performance.
- Improved power and cooling efficiencies with low power consumption and
enhanced PowerChoice™ technology
- Multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor and ramp load technologies
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement costs
while securely protecting data where it lives—on the drive.2
- FIPS (140-2) option provides all the benefits of SED and meets U.S.,
Canada and U.K. government data encryption compliance requirements.2,3
Best-Fit Applications
- High-capacity bulk-data storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
- Cloud storage
|
|
| Specifications |
ST33000650NS |
| Interface |
SATA 6Gb/s |
| Protection Information |
- |
| Low Halogen |
Yes |
| Cache, Multisegmented (MB) |
64 |
| Spindle Speed (RPM) |
7200 |
| Interface Access Speed (Gb/s) |
6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate (MB/s) |
155 |
| Seek Time, Average Read/Write (ms) |
8.5/9.5 |
| Average Latency (ms) |
4.16 |
| Interface Ports |
Single |
| Rotational Vibration @ 1500 Hz (rad/sec4) |
12.5 |
| Mean Time Between Failures (MTBF, hours) |
1.2 million |
| Reliability Rating at Full 24x7 Operation (AFR) |
0.73% |
| Nonrecoverable Read Errors per Bits Read |
1 sector per 10E15 |
| Power-On Hours per Year |
8760 |
| Bytes per Sector |
512 |
| Idle (W) |
7.7 |
| Typical Operating, Random Read (W) |
10.7 |
| Power Supply Requirements |
+12V and +5V |
| PowerChoice™ Technology |
Yes |
| Temperature, Operating |
5 to 60 °C |
| Vibration, Nonoperating: <5Hz to 500Hz (G rms) |
4.9 |
| Shock, Operating, 2ms (Read/Write) (Gs) |
70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) |
300 |
| Height (in/mm, max) |
1.028/26.10 |
| Width (in/mm, max) |
4.010/101.85 |
| Depth (in/mm, max) |
5.787/147.00 |
| Weight (lb/g) |
1.543/700 |
| Carton Unit Quantity |
20 |
| Cartons per Pallet |
40 |
| Cartons per Layer |
8 |
*Requires TCG-compliant host or controller support. Self-Encrypting Drive (SED) security option (SAS models only) eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes and allows organizations to securely repurpose or sell hard disk drives. Not available in all models or countries.
**FIPS (140-2) certification is pending.
1 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to hard drive capacity.
2Self-Encrypting Drive (SED) and FIPS Self-Encrypting Drive options require TCG-compliant host or controller support. Not available in all countries.
3 Certification pending. See FIPS 140-2 Level 2 Certification at http://csrc.nist.gov/groups/STM/cmvp/documents/14-1/1401vend.htm
4 Seagate recommends validating your configuration with your HBA/RAID controller manufacturer to ensure full 3TB capacity capabilities.
5 Self-Encrypting Drive model; requires TCG-compliant host or controller support. Not available in all countries.
Documentation:
Seagate Constellation ES.2 Datasheet (.PDF)
Seagate SATA Hard Drives
