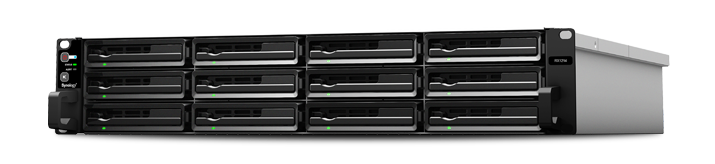

Synology Expansion Unit RX1214/RX1214RP
Scale up your RackStation in a Breeze

Overview:

Synology RX1214/RX1214RP delivers an effortless solution for volume expansion and data backup for Synology RackStation. The RX1214/RX1214RP seamlessly scales up the storage capacity of the Synology RackStation by an additional 12 hard drives on-the-fly when connected directly to an expansion cable.

• Plug-n-Use Design for Seamless Storage Space Upgrade
• Online Volume Expansion
• SATA III 6Gb/s Interface Support
• Redundant Power Supplies Ensure Service Uptime (RX1214RP only)
• Energy-Saving Deep Sleep Mode
• Easy Installation with Screwless Rail Kit (optional)
• Managed from Synology DiskStation Manager (DSM)

Volume Expansion & Backup

When running out of hard drive capacity on the Synology RackStation, Synology RX1214/RX1214RP provides an easy way to immediately scale capacity by additional 12 hard drives. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring the Synology RackStation continues its service during the capacity expansion. Synology RX1214/RX1214RP can be used as a dedicated local backup solution for the Synology RackStation. When created as a separate volume, the Synology RX1214/RX1214RP provides a great backup solution to its local hard disks in case of system failure.

Reliable Plug-n-use Design

Synology RackStation securely connects to Synology RX1214/RX1214RP with an high-bandwidth expansion cable that ensures maximum throughput. It allows the hard drives in the connected Synology RX1214/RX1214RP to operate as they are the internal ones of the Synology RackStation, with no lag in data retrieval. With SATA III 6Gb/s interface support, Synology RX1214/RX1214RP unleashes the full performance of the installed drives and provides outstanding data transfer rate. To ensures 24/7 service uptime, Synology RX1214RP is equipped with redundant power supplies, allowing automatic fail-over support if one of the PSUs is failed.

Green & Easy to Manage

Deep Sleep can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the hard disk. The RX1214/RX1214RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

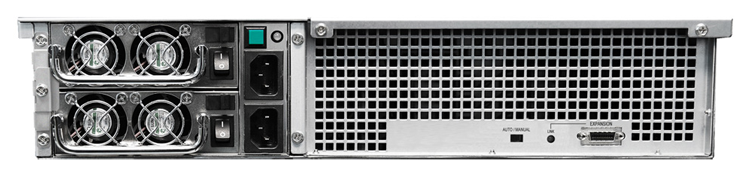

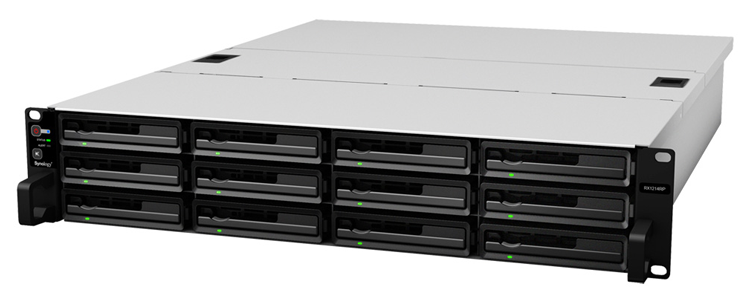

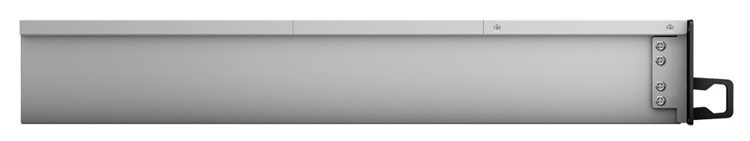

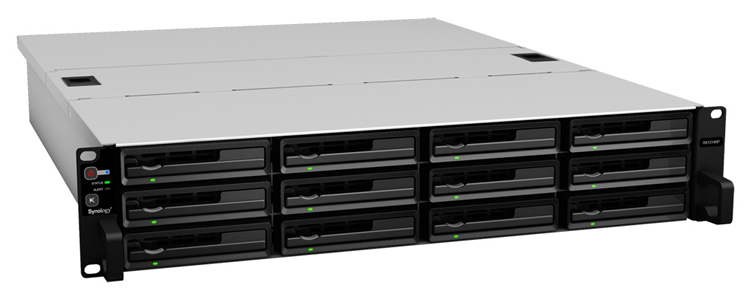

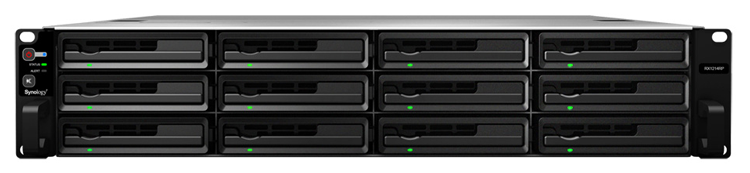

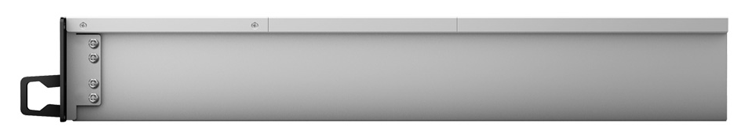

Product Views:

Specifications:

Hardware Specifications:
Applied Models	RS3614xs+ RS3413xs+ RS3614(RP)xs RS3412(RP)xs RS3411(RP)xs RS2416(RP)+ RS2414(RP)+ RS2212(RP)+ RS2211(RP)+
Note	DSM version requirement: 4.2-3320 or later version
Storage
Drive Bay(s)	12
Compatible Drive Type	3.5" SATA III / SATA II HDD 2.5" SATA III / SATA II HDD 2.5" SATA III / SATA II SSD
Maximum Internal Raw Capacity	72 TB (6 TB HDD X 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
Infiniband port	1
Appearance
Size	88 mm X 445 mm X 570 mm
Weight	12 kg 14 kg (for RP model)
Power
Power Recovery	Synchronized with the Synology RackStation
Power Supply Unit / Adapter	400W 2 X 400W (for RP model)
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	108 W (Access) 30 W (HDD Hibernation) 2.61 W (Deep Sleep) 121 W (Access, for RP model) 39 W (HDD Hibernation, for RP model) 6.46 W (Deep Sleep, for RP model)
British Thermal Unit	368.51 BTU/hr (Access) 102.36 BTU/hr (HDD Hibernation) 8.90 BTU/hr (Deep Sleep) 412.87 BTU/hr (Access, for RP model) 133.07 BTU/hr (HDD Hibernation, for RP model) 22.04 BTU/hr (Deep Sleep, for RP model)
Redundant Power Supply (for RP model)
Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-10°C to 70°C (15°F to 155°F)
Relative Humidity	5% to 95% RH
Others
System Fan	80 mm X 80 mm X 4 pcs
Easy Replacement System Fan
Noise Level	40.5 dB(A) 42.2 dB(A) (for RP model)
Note	Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification	FCC Class A CE Class A BSMI Class A
Warranty	5 Years
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 User's Guide X 1 Accessory Pack X 1 AC Power Cord X 1 AC Power Cord X 2 (for RP model) Expansion Cable: Infiniband X 1
Optional Accessories	Synology RKS1314 - Rail Kit Sliding

Documentation:

Download the Synology RX1214/RX1214RP Data Sheet (PDF).
