HGST Deskstar 7K1000.C:
3.5-inch Desktop SATA Hard Disk Drives
The Deskstar™ 7K1000.C hard drive is a 7200 RPM 3.5-inch hard drive that provides an exceptional blend of power efficiency and performance, making it an ideal solution for power-friendly consumer and commercial desktop computers. Leveraging eighth-generation power management technology, as well as power-saving HiVERT™ innovations pioneered on the popular 2.5-inch line of notebook hard drives from HGST, this new desktop drive provides up to 18% idle power savings over the previous model, delivering best-in-class power management and thermal emissions.
Innovation for a more sustainable environment
The Deskstar 7K1000.C demonstrates HGST's ecological leadership with its halogen-free design and power-efficient operation. Both these features helped qualify the drive for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.
Power efficiency supports ENERGY STARTM 5.0
The ENERGY STAR 5.0 specifications released by the U.S. Environmental Protection Agency (EPA) are recognized around the world as a way of identifying energy-efficient PCs and other computer equipment. PCs that meet the ENERGY STAR 5.0 criteria are expected to become increasingly popular with both corporations and consumers. Some corporations are choosing to purchase ENERGY STAR PCs as part of their "green" initiatives. The low power profile of the Deskstar 7K1000.C hard drive enables a reduction in overall system power requirements, which helps PC manufacturers achieve ENERGY STAR ratings.
Highlights
- Capacities up to 1TB
- 7200 RPM performance
- Up to 18% idle power savings over previous generation product
- Halogen-free design for eco-friendly footprint
- Built on award-winning proven design
Applications / Environments
- Consumer and commercial computers
- Personal storage
- PC gaming
|

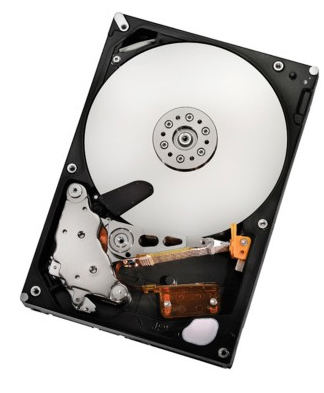

Deskstar 7K1000.C Hard Drive View
|
| Features and Benefits |
| Capacity |
160GB to 1TB |
Full range of capacity points |
| Performance |
Up to 32MB cache buffer |
Faster data processing |
| Reliability |
Thermal Fly-height Control (TFC) |
Better soft error rate for improved reliability and performance |
| Head load/unload |
Protects disk during non-operation |
| ECC and CRC protection |
Data integrity enhanced throughout circuits |
| SMART command transport |
Adaptive error correction |
| Internal thermal sensor |
Improves data integrity |
| Power |
Advanced Power Management |
Reduces power during idle periods |
| HiVERT™ technology |
Best-of-breed power consumption |
| Specifications |
0F10383 |
| Interface |
SATA 3 Gb/s |
| Max. areal density (Gbits/sq. in.) |
350 |
| Data buffer (MB)2 |
32 |
| Rotational speed (RPM) |
7200 |
| Media transfer rate (Mbits/s, max) |
1546 |
| Interface transfer rate (MB/s, max) |
300 |
| Error rate (non-recoverable, bits read) |
1 in 1014 |
| Load/unload cycles (at 40˚ C) |
300,000 |
| Availability3 (hrs/day x days/wk) |
24x7 |
| Idle (Bels, typical) |
2.4 |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+/-10%) |
| Startup current (A, max.) |
0.5 (+5V), 2.0 (+12V) |
| Idle (W) |
4.4 |
| z-height (mm) |
26.1 |
| Dimensions (width x depth, mm) |
101.6 (+/-0.25) x 147 |
| Weight (typical, g, max.) |
680 |
| Ambient temperature |
0° to 60° C |
| Relative humidity (non-condensing) |
8% to 90% |
| Shock (half-sine wave, G (2ms)) |
70 |
| Vibration, random (G RMS 5 to 500 Hz) |
0.67 (XYZ) |
| Ambient temperature |
-40° to 70° C |
| Relative humidity (non-condensing) |
5% to 95% |
| Shock (half-sine wave, G (1ms)) |
350 |
| Vibration, random (G RMS 5 to 500 Hz) |
1.04 (XYZ) |
1 One GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity may be less.
2 Portion of buffer capacity used for drive firmware
3 Intended for low duty cycle, non mission-critical applications in PC, gaming and external storage environments, which may vary from application to application. Note that customer environments may vary from application to application.
Documentation:
HGST Deskstar 7K1000.C Datasheet (.PDF)
HGST Deskstar 7K3000:
3.5-inch Desktop SATA Hard Disk Drives
The Deskstar™ 7K3000 is HGST’s first hard drive to deliver an enormous three terabytes of storage capacity and 7200 RPM performance in a standard 3.5-inch form factor. The 7K3000 is also the first HGST hard drive with a 6Gb/s SATA interface, which along with its 64MB cache buffer delivers a big boost to performance over the previous generation product. The Deskstar 7K3000 is designed to allow manufacturers to leverage the benefits of the latest components and operating systems to deliver high-performance, high-capacity, power-efficient systems. Manufacturers planning to use the highest capacity 3TB drive in systems should consult the HGST High Capacity Technology Brief. Deskstar 7K3000 is also available in 2TB and 1.5TB models that accommodate existing systems, as well as new designs.
Excellent performance and energy efficiency
The Deskstar 7K3000 delivers an extraordinary blend of capacity, performance and power efficiency. All capacities will ship with 64MB cache buffer and 6Gb/s SATA interface. This configuration shows an improvement of up to 27% over previous generation products in PCMark Vantage testing scores. In addition, the 2TB 7K3000 offers idle power savings of up to 30% over previous generation products, making it an ideal storage platform for desktop computing. Leveraging eighth-generation power management technology, including power-saving innovations like HiVERT™ technology, this drive delivers excellent power efficiency and thermal emissions to help manufacturers meet energy compliance targets and extend drive life.
Eco-friendly storage
The Deskstar 7K3000 demonstrates HGST ecological leadership with its halogen-free design and power-efficient operation. Both these features helped qualify the drive for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.
Highlights
- Up to 3TB for the highest capacity needs
- 7200 RPM performance
- 6Gb/s SATA interface for improved performance over previous generation product
- Eco-friendly, Halogen-free design
- Designed to leverage new platforms and modern operating systems
Applications / Environments
- Consumer and commercial computers
- External storage
- PC gaming
- Video editing arrays
|
Deskstar 7K3000 Hard Drive View
|
| Features and Benefits |
| Capacity |
3TB
2TB & 1.5TB models available |
Highest capacity available in a single hard drive |
| Performance |
64MB cache buffer
SATA 6Gb/s interface |
Faster data processing |
| Reliability |
Thermal Fly-height Control (TFC) |
Better soft error rate for improved reliability and performance |
| Head load/unload |
Protects disk during non-operation |
| LDPC and CRC protection |
Data integrity enhanced throughout circuits |
| SMART command transport |
Adaptive error correction |
| Internal thermal sensor |
Improves data integrity |
| Power |
Advanced Power Management |
Reduces power during idle periods |
| HiVERT™ technology |
Best-of-breed power consumption |
| Specifications |
0F12450 |
0F12115 |
| Interface |
SATA 6 Gb/s |
SATA 6 Gb/s |
| Sector size (bytes) |
512 |
512 |
| Max. areal density (Gbits/sq. in.) |
411 |
411 |
| Data buffer (MB)2 |
64 |
64 |
| Rotational speed (RPM) |
7200 |
7200 |
| Media transfer rate (Mbits/s, max) |
1656 |
1656 |
| Interface transfer rate (MB/s, max) |
600 |
600 |
| Error rate (non-recoverable, bits read) |
1 in 1014 |
1 in 1014 |
| Load/unload cycles (at 40˚ C) |
600,000 |
300,000 |
| Availability3 (hrs/day x days/wk) |
24x7 |
24x7 |
| Idle (Bels, typical) |
2.9 |
2.7 |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+10%/-8%) |
+5 VDC (+/-5%)
+12 VDC (+/-10%) |
| Startup current (A, max.) |
1.2 (+5V), 2.0 (+12V) |
1.2 (+5V), 2.0 (+12V) |
| Idle (W) |
6.8 |
5.2 |
| z-height (mm) |
26.1 |
26.1 |
| Dimensions (width x depth, mm) |
101.6 (+/-0.25) x 147 |
101.6 (+/-0.25) x 147 |
| Weight (typical, g, max.) |
690 |
680 |
| Ambient temperature |
5° to 60° C |
0° to 60° C |
| Relative humidity (non-condensing) |
8% to 90% |
8% to 90% |
| Shock (half-sine wave, G (2ms)) |
70 |
70 |
| Vibration, random (G RMS 5 to 500 Hz) |
0.67 (XYZ) |
0.67 (XYZ) |
| Ambient temperature |
-40° to 70° C |
-40° to 70° C |
| Relative humidity (non-condensing) |
5% to 95% |
5% to 95% |
| Shock (half-sine wave, G (1ms)) |
300 (1ms) |
300 (2ms) |
| Vibration, random (G RMS 2 to 200 Hz) |
1.04 (XYZ) |
1.04 (XYZ) |
1 One GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity may be less.
2 Portion of buffer capacity used for drive firmware
3 Intended for low duty cycle, non mission-critical applications in PC, gaming and external storage environments, which may vary from application to application. Note that customer environments may vary from application to application.
Documentation:
HGST Deskstar 7K3000 Datasheet (.PDF)
HGST Deskstar 7K4000:
3.5-inch Desktop SATA Hard Disk Drives
The Deskstar™ 7K4000 offers the industry's highest hard drive capacity at an enormous four terabytes of storage with 7200 RPM performance in a standard 3.5-inch form factor. This drive uses Advanced Format, which increases the sector size on HDDs from 512 bytes to 4096 (4K) bytes, thereby increasing capacities and improving error correcting capabilities. Consult the HGST Advanced Format Technology Brief for more information. The 7K4000 also boasts a 6Gb/s SATA interface and 64MB cache buffer to balance performance and capacity. The Deskstar 7K4000 is designed to help manufacturers deliver high-performance, high-capacity, power-efficient systems. Manufacturers planning to use the 4TB drive in systems should consult the HGST High Capacity Technology Brief.
Balanced performance, capacity and energy efficiency
The Deskstar 7K4000 delivers an extraordinary blend of capacity, performance and power efficiency. This model will ship with 64MB cache buffer and 6Gb/s SATA interface, making it an ideal storage platform for desktop computing. Leveraging support for Extended Power Conditions and eighth-generation power management technology, including power-saving innovations like HiVERT™ technology, this drive delivers excellent power efficiency and thermal emissions to help manufacturers meet energy compliance targets and extend drive life.
Eco-friendly storage
The Deskstar 7K4000 demonstrates HGST ecological leadership with its halogen-free design and power-efficient operation. Both of these features helped qualify the drive for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.
Highlights
- Enormous 4TB capacity
- Advanced Format
- 512 emulation
- 7200 RPM performance
- 6Gb/s SATA interface
- Eco-friendly, halogen-free design
Applications / Environments
- Consumer and commercial computers
- External storage
- PC gaming
- Video editing arrays
|
Deskstar 7K4000 Hard Drive View
|
| Features and Benefits |
| Capacity |
4TB |
Highest capacity available in a single hard drive |
| Performance |
64MB cache buffer
SATA 6Gb/s interface |
Faster data processing |
| Reliability |
Thermal Fly-height Control (TFC) |
Better soft error rate for improved reliability and performance |
| Head load/unload |
Protects disk during non-operation |
| LDPC and CRC protection |
Enhanced data integrity |
| SMART command transport |
Adaptive error correction and command time limit control |
| Internal thermal sensor |
Improves data integrity |
| Power |
Advanced Power Management |
Reduces power during idle periods |
| HiVERT™ technology |
Best-of-breed power consumption |
| Specifications |
0S03363 |
| Interface |
SATA 6Gb/s |
| Sector size (bytes) |
512 |
| Max. areal density (Gbits/sq. in.) |
446 |
| Data buffer (MB)3 |
64 |
| Rotational speed (RPM) |
7200 |
| Media transfer rate (Mbits/s, max) |
1638 |
| Interface transfer rate (MB/s, max) |
600 |
| Error rate (non-recoverable, bits read) |
1 in 1014 |
| Load/unload cycles (at 40˚ C) |
600,000 |
| Availability2 (hrs/day x days/wk) |
24x7 |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+10%/-8%) |
| Startup current (A, max.) |
1.2 (+5V), 2.0 (+12V) |
| Unload Idle (W) |
6.9 |
| Idle (Bels, typical) |
2.9 |
| z-height (mm) |
26.1 |
| Dimensions (width x depth, mm) |
101.6 (+/-0.25) x 147 |
| Weight (typical, g, max.) |
690 |
| Ambient temperature |
5° to 60° C |
| Relative humidity (non-condensing) |
8% to 90% |
| Shock (half-sine wave, G) |
70 |
| Vibration, random (G RMS 5 to 500 Hz) |
0.67 (XYZ) |
| Ambient temperature |
-40° to 70° C |
| Relative humidity (non-condensing) |
5% to 95% |
| Shock (half-sine wave, G) |
300 |
| Vibration, random (G RMS 2 to 200Hz) |
1.04 (XYZ) |
1 One GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drive, the computer's operating system, and other factors.
2 Advanced Format drive: 4K physical sectors with 512 emulation
3 Portion of buffer capacity used for drive firmware
4 Intended for low duty cycle, non mission-critical applications in PC, gaming and external storage environments, which may vary from application to application. note that customer environments may vary from application to application.
Documentation:
HGST Deskstar 7K4000 Datasheet (.PDF)
HGST Ultrastar A7K2000:
3.5-inch Enterprise SATA Hard Disk Drives
With a robust fourth-generation mechanical design, Ultrastar A7K2000 is specifically built and tested for the Enterprise. Operating at 7200 RPM, it offers better overall performance than slower-RPM, capacity-oriented drives at impressively low power-consumption rates. The Ultrastar A7K2000 also features HGST-patented Rotational Vibration Safeguard (RVS) sensor technology, which optimizes drive reliability in multi-drive RAID arrays and rack-mounted systems. Backed by a five-year warranty, the Ultrastar platform has earned HGST a reputation among server and storage vendors as a global partner dedicated to delivering the highest quality and reliability in the industry.
Doubling the capacity density
As data center professionals across the globe work to meet growing enterprise needs, they face the dilemma of storing more data in the same footprint while also reducing power and HVAC consumption. The new Ultrastar™ A7K2000 provides twice the data storage capacity of the prior generation Ultrastar A7K1000 drive, and does so using fewer watts. It is now possible to achieve a colossal 1.2 petabytes (PB) in the footprint of a standard 19-inch enterprise storage rack by deploying the 2TB A7K2000 in a stack of ten 4U, 60-bay enclosures.
Combining 7200 RPM performance and granular power control
Operating at 7200 RPM, the HGST Ultrastar A7K2000 offers better overall performance than slower-RPM, capacity-oriented drives at impressively low power-consumption rates. When compared to the previous generation Ultrastar A7K1000, the A7K2000 offers up to a 155% improvement in sustained data transfer rate, and a 120% improvement in watts-per-GB. With five Advanced Power Management modes, a 36% reduction in watts during low-RPM idle mode, and using less than 1W during standby/sleep mode, the Ultrastar A7K2000 can help data centers achieve lower AC power and HVAC requirements, freeing up precious headroom for growing enterprise needs.
Enhancing data safety and security
To ensure the utmost in data safety and security, the Ultrastar A7K2000 is also available with a bulk data encryption (BDE) option. When enabled, the HGST BDE implementation encrypts all data on the drive using a private security key as it is written to the disk, and then decrypts it with the key as it is retrieved, giving users an extreme level of data protection. Unlike softwarebased encryption solutions, the HGST BDE implementation is hardware-based, so it doesn’t slow the system down. This technology also speeds up and simplifies the drive re-deployment and decommissioning process. By deleting the encryption key, the data is rendered unreadable, thereby eliminating the need for time-consuming, multi-pattern data overwrite.
Delivering industry-leading reliability
With a robust fourth-generation mechanical design, Ultrastar A7K2000 is specifically built and tested for the enterprise. The Ultrastar SATA drive family features HGST-patented Rotational Vibration Safeguard (RVS) sensor technology, which optimizes drive reliability in multi-drive RAID arrays and rack-mounted systems. Backed by a five-year warranty, the Ultrastar platform has earned HGST a reputation among server and storage vendors as a global partner dedicated to delivering the highest quality and reliability in the industry.
Innovation for a more sustainable environment
The Ultrastar A7K2000 demonstrates HGST ecological leadership with its halogen-free design and power-efficient operation. Both these features serve to qualify the drive for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.
Highlights
- Up to 2 terabytes of capacity
- Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
- 24x7 Enterprise-class duty cycle
- Targeted 1.2 million hours MTBF
- 5-year limited warranty
- 3Gb/s SATA for configuration flexibility
Applications / Environments
- Data warehousing & mining
- Disk-to-disk backup & archiving
- Rack mounted RAID arrays
- Network Attached Storage (NAS)
- Cloud storage
- Massive Scale Out (MSO)
|
Ultrastar A7K2000 Hard Drive View
|
| Specifications |
0F10452 |
0A39289 |
| Interface |
SATA 3 Gb/s |
SATA 3 Gb/s |
| Sector size (bytes) |
512 |
512 |
| Max. areal density (Gbits/sq. in.) |
285 |
352 |
| Data buffer (MB)3 |
32 |
32 |
| Rotational speed (RPM) |
7200 |
7200 |
| Interface transfer rate (MB/s, max) |
300 |
300 |
| Sustained transfer rate (typical, MB/sec) |
134 |
134 |
| Seek time (read, typical, ms)4 |
8.2 |
8.5 |
| Error rate (non-recoverable, bits read) |
1 in 1015 |
1 in 1015 |
| Load/unload cycles (at 40˚ C) |
600,000 |
600,000 |
| Availability2 (hrs/day x days/wk) |
24x7 |
24x7 |
| Targeted MTBF2 (hrs) |
1,200,000 |
1,200,000 |
| Idle (Bels, typical) |
2.9 |
2.4 |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+10%/-8%) |
+5 VDC (+/-5%)
+12 VDC (+10%/-8%) |
| Startup current (A, max.) |
2.0 (+12V), 1.2 (+5V) |
2.0 (+12V), 1.2 (+5V) |
| Read/write (W) |
11.1 |
8.4 |
| Unload Idle (W) |
5.6 |
3.9 |
| Power consump. efficiency index (W/GB) |
0.0028 |
0.0039 |
| z-height (mm) |
26.1 |
26.1 |
| Dimensions (width x depth, mm) |
101.6 (+/-0.25) x 147 |
101.6 (+/-0.25) x 147 |
| Weight (typical, g, max.) |
740 |
680 |
| Ambient temperature |
5° to 60° C |
5° to 60° C |
| Shock (half-sine wave, G) |
70 |
70 |
| Vibration, random (G RMS 5 to 500 Hz) |
0.67 (XYZ) |
0.67 (XYZ) |
| Ambient temperature |
-40° to 70° C |
-40° to 70° C |
| Shock (half-sine wave, G) |
300 |
350 |
1 One GB is equal to one billion bytes and one TB equals 1,000 GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity may be less.
2 Intended for use in lower duty cycle environments in the enterprise storage hierarchy, such as RAID and nearline applications. This MTBF target is based on a sample population and is estimated by statistical measurements and acceleration algorithms under nominal operating conditions. MTBF ratings are not intended to predict an individual drive’s reliability. MTBF does not constitute a warranty.
3 Portion of buffer capacity used for firmware
4 Excludes command overhead
Documentation:
HGST Ultrastar A7K2000 Datasheet (.PDF)
HGST Ultrastar 7K3000:
3.5-inch Enterprise 7200 RPM SATA Hard Disk Drives
The HGST Ultrastar™ 7K3000 is the world’s first and only 7200 RPM hard drive rated at 2.0 million hours MTBF and backed by a five-year limited warranty. The Ultrastar 7K3000 represents the fifth-generation HGST 5-platter mechanical design, first introduced in 2004, and has been field proven by top server and storage OEMs as well as leading Internet giants. When the highest quality and reliability are a top requirement, customer field data proves that the Ultrastar 7K3000 delivers by reducing downtime, eliminating service calls and keeping TCO to a minimum. Engineered for the highest reliability, the Ultrastar 7K3000 is not only put through grueling design tests during development but must also pass stringent ongoing reliability testing during manufacturing. Across the entire Ultrastar family, world-class quality control, combined with scientific root-cause analysis and multi-faceted corrective actions, ensure that HGST GST remains the recognized leader in quality and reliability for enterprise-class hard drives.
Increasing capacity density by 50%
Recent measures such as data de-duplication and thin provisioning have not been able to stem the explosive petabyte (PB) growth requirements in cloud storage and data centers. Pervasive Internet computing with remotely stored email, pictures and social media, all being accessed from light-weight tablet and notebook computers, is changing consumer expectations. Ongoing worldwide government data retention regulations and security requirements are also driving up data center and private cloud storage needs. At the same time, tile space and megawatts remain at a premium, while in some highly built-out metropolitan areas both are at an absolute “no-growth” state. To meet these demands, the Ultrastar 7K3000 delivers 50% more capacity in the same footprint and does so at a 32% reduction in watts/GB versus our prior generation Ultrastar A7K2000 product. It is now possible to achieve a colossal 1.8 PB in the footprint of a standard 19-inch enterprise storage rack by stacking ten 4U, 60-bay enclosures.
Offering choices of interface and encryption
The HGST Ultrastar 7K3000 is the first HGST 7200 RPM drive available in both 6Gb/s SATA and 6Gb/s SAS interfaces and also available in two encryption options. The Ultrastar 7K3000 SATA model integrates easily with legacy SATA and Fibre Channel to SATA environments. The Ultrastar 7K3000 SATA model is available with a bulk data encryption (BDE) option. The Ultrastar 7K3000 dual-port SAS model is targeted at emerging 6Gb/s SAS enterprise infrastructure and is available with industry standard TCG Enterprise_A encryption. When enabled, both of these hardware-based implementations encrypt all data on the drive using a private security key as it is written to the disk, and then decrypt it with the key as it is retrieved, giving users an extreme level of data protection. These security options not only protect sensitive data but also reduce the time and effort involved in re-deploying hard drives since without the key, the data is unrecoverable.
Combining 7200 RPM performance and granular power control
Operating at 7200 RPM, the HGST Ultrastar 7K3000 offers better overall performance than slower RPM capacity-oriented drives, and does so at impressively low power consumption rates. When compared to HGST’s previous generation Ultrastar A7K2000, the 7K3000 is up to 3 times faster in sustained data transfer rates. The Ultrastar 7K3000 can help data centers achieve lower AC power and HVAC requirements. With five Advanced Power Management modes, the Ultrastar 7K3000 achieves a 59% reduction in watts during low RPM idle mode, and uses less than 1W during standby/sleep modes, freeing up precious headroom for growing enterprise needs.
Innovating for a more sustainable environment
The Ultrastar 7K3000 demonstrates HGST ecological leadership with its halogen-free design and power-efficient operation. Both these features serve to qualify the drive for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.
Highlights
- 2.0 million hours MTBF
- Up to 3 terabytes of capacity
- 6Gb/s SATA and 6Gb/s SAS models for configuration flexibility
- Dual Stage Actuator (DSA) and Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
- 24x7 accessibility for enterprise-class, capacity-optimized applications
Applications / Environments
- Cloud storage
- Massive Scale Out (MSO)
- Decision support & RAID
- Data warehousing & mining
- Disk-to-disk backup & archiving
- RAID arrays
- Network Attached Storage (NAS)
|
Ultrastar 7K3000 Hard Drive View
|
| Specifications |
0F12456 |
| Interface |
SATA 6Gb/s |
| Sector size (bytes) |
512 |
| Max. areal density (Gbits/sq. in.) |
369 / 360 |
| Data buffer (MB)3 |
64 |
| Rotational speed (RPM) |
7200 |
| Interface transfer rate (MB/s, max) |
600 |
| Sustained transfer rate (typical, MB/sec) |
152 |
| Seek time (read, typical, ms)4 |
8.2 |
| Error rate (non-recoverable, bits read) |
1 in 1015 |
| Load/unload cycles (at 40˚ C) |
600,000 |
| Availability2 (hrs/day x days/wk) |
24x7 |
| MTBF5 (M hours) |
2.0 |
| Idle (Bels, typical) |
2.9 |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+10%/-8%) |
| Startup current (A, max.) |
2.4 (+12V), 4.5 (+5V) |
| Read/write (W) |
11.3 |
| Unload Idle (W) |
5.6 |
| z-height (mm) |
26.1 |
| Dimensions (width x depth, mm) |
101.6 (+/-0.25) x 147 |
| Weight (typical, g, max.) |
690 |
| Ambient temperature |
5° to 60° C |
| Shock (half-sine wave, G) |
70 |
| Vibration, random (G RMS 5 to 500 Hz) |
0.67 (XYZ) |
| Ambient temperature |
-40° to 70° C |
| Shock (half-sine wave, G) |
300 |
1 One GB is equal to one billion bytes and one TB equals 1,000 GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity may be less.
2 Intended for use in lower duty cycle environments in the enterprise storage hierarchy, such as RAID and nearline applications. This MTBF target is based on a sample population and is estimated by statistical measurements and acceleration algorithms under nominal operating conditions. MTBF ratings are not intended to predict an individual drive’s reliability. MTBF does not constitute a warranty.
3 Portion of buffer capacity used for firmware
4 Excludes command overhead
5 Intended for use in lower duty cycle environments in the enterprise storage hierarchy such as nearline applications. This MTBF rating is based on a sample population and is estimated by statistical measurements and acceleration algorithms under nominal operating conditions. MTBF ratings are not intended to predict an individual drive’s reliability. MTBF does not constitute a warranty.
Documentation:
HGST Ultrastar 7K3000 Datasheet (.PDF)
HGST Ultrastar 7K4000:
3.5-inch Enterprise 7200 RPM SATA Hard Disk Drives
HGST Ultrastar™ 7K4000 is the world’s first 4TB 7200 RPM hard drive with a 2.0 million hours MTBF specification and backed by a full 5-year warranty. Ultrastar 7K4000 represents the sixth-generation HGST 5-platter design, which has been field proven by top server and storage OEMs and Internet giants. Engineered for the highest quality, the Ultrastar 7K4000 is put through grueling design tests during development and must pass stringent ongoing reliability testing during manufacturing. Ultrastar 7K4000 delivers by reducing downtime, eliminating service calls and minimizing TCO.
Delivering Industry-Leading Quality and Reliability
HGST Ultrastar™ 7K4000 is the world's first 4TB 7200 RPM hard drive with a 2.0 million
hours MTBF specification and backed by a full 5-year warranty. Ultrastar 7K4000 represents
the sixth-generation HGST 5-platter design,which has been field proven by top server and
storage OEMs and Internet giants. Engineered for the highest quality,the Ultrastar 7K4000
is put through grueling design tests during development and must pass stringent ongoing
reliability testing during manufacturing. Ultrastar 7K4000 delivers by reducing downtime,
eliminating service calls and minimizing TCO.
Increasing Capacity Density by One Third
To deal with the explosive petabyte (PB) growth, data centers require large amounts
of efficient storage. Reducing W/GB without expanding floor space is vital to lowering
operating costs. To meet these demands, Ultrastar 7K4000 delivers 33% more capacity in the
same footprint at 24% lower W/GB than its predecessor, Ultrastar 7K3000. Now you can get
2.4 PB in the footprint of a standard 19-inch enterprise storage rack by stacking ten 4U, 60-
bay enclosures. Ultrastar 7K4000 is an Advanced Format* drive, using 4096-byte sector size
to provide enormous capacity earlier than otherwise possible for environments optimized
for this technology. Advanced Format drives are backwards compatible with legacy 512-byte
sector size by offering built-in 512-byte emulation through the SATA interface.
Combining 7200 RPM Performance and Granular Power Control
Operating at 7200 RPM, Ultrastar 7K4000 offers better overall performance than slower RPM
capacity-oriented drives, and does so at impressively low power-consumption rates. The
Ultrastar 7K4000 can help data centers achieve lower AC power and HVAC requirements.
With five Advanced Power Management modes,the 7K4000 achieves a 59% reduction
in watts during low RPM idle mode, and uses less than 1W during standby/sleep modes,
freeing up precious headroom for growing enterprise needs.
Innovating for a More Sustainable Environment
The Ultrastar 7K4000,with its halogen-free design and power-efficient operation, qualifies
for the HGST EcoTrac classification,which identifies products that minimize environmental
impact in the areas of product design,manufacturing, operation and disposal.
Highlights
- 2.0 million hours MTBF
- Up to 4 terabytes of capacity
- 512 byte emulation (512e), legacy 512 byte configuration (512n) also available
- 6Gb/s SATA interface
- Dual Stage Actuator (DSA) and Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
- 24x7 accessibility for enterprise-class, capacity-optimized applications
- 5-year limited warranty
Applications / Environments
- Cloud storage
- Massive Scale Out (MSO)
- Data warehousing & mining
- Disk-to-disk backup & archiving
- RAID arrays
- Network Attached Storage (NAS)
|
Ultrastar 7K4000 Hard Drive View
|
| Features and Benefits |
| Capacity |
4TB, 3TB and 2TB |
Highest enterprise capacity available in a single platform |
| Performance |
7200 RPM |
High performance for business critical applications |
| Rotational Vibration Safeguard (RVS) |
Maintains drive performance in high rotational vibration environments and multi-drive systems |
| Reliability |
Thermal Fly-height Control (TFC) with internal thermal sensor |
Better soft error rate for improved reliability and performance |
| Head load/unload |
Protects disk during non-operation |
| SMART command transport |
Adaptive error correction |
| Power |
Improved watts per gigabyte (W/GB) |
24% lower W/GB than predecessor for maximum efficiency |
| Security |
Optional Bulk Data Encryption |
Encrypt private data, providing security and easy redeployment |
| Specifications |
0F12456 |
| Interface |
SATA 6Gb/s |
| Sector size (bytes)2 |
512e / 512n |
| Max. areal density (Gbits/sq. in.) |
446 / 475 |
| Data buffer (MB)3 |
64 |
| Rotational speed (RPM) |
7200 |
| Interface transfer rate (MB/s, max) |
600 |
| Sustained transfer rate (typical, MB/sec) |
152 |
| Seek time (read, typical, ms)4 |
171 / 181 |
| Error rate (non-recoverable, bits read) |
1 in 1015 |
| Load/unload cycles (at 40˚ C) |
600,000 |
| Availability2 (hrs/day x days/wk) |
24x7 |
| MTBF5 (M hours) |
2.0 |
| Idle (Bels, typical) |
2.9 |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+10%/-8%) |
| Startup current (A, max.) |
1.2 (+5V), 2.0 (+12V) |
| Read/write (W) |
11.4 |
| Unload Idle (W) |
5.7 |
| z-height (mm) |
26.1 |
| Dimensions (width x depth, mm) |
101.6 (+/-0.25) x 147 |
| Weight (typical, g, max.) |
690 |
| Ambient temperature |
5° to 60° C |
| Shock (half-sine wave, G) |
70 |
| Vibration, random (G RMS 5 to 500 Hz) |
0.67 (XYZ) |
| Ambient temperature |
-40° to 70° C |
| Shock (half-sine wave, G) |
300 |
1 One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drive, the computer's operating system, and other factors.
2 Advanced Format drive: 4K (4096-byte) physical sectors with 512-byte emulation (512e). 512n = 512-byte native physical sectors
3 Portion of buffer capacity used for firmware
4 MB/s based on 1,000,000 bytes per second
5 Excludes command overhead
Documentation:
HGST Ultrastar 7K4000 Datasheet (.PDF)
HGST SATA Hard Drives
